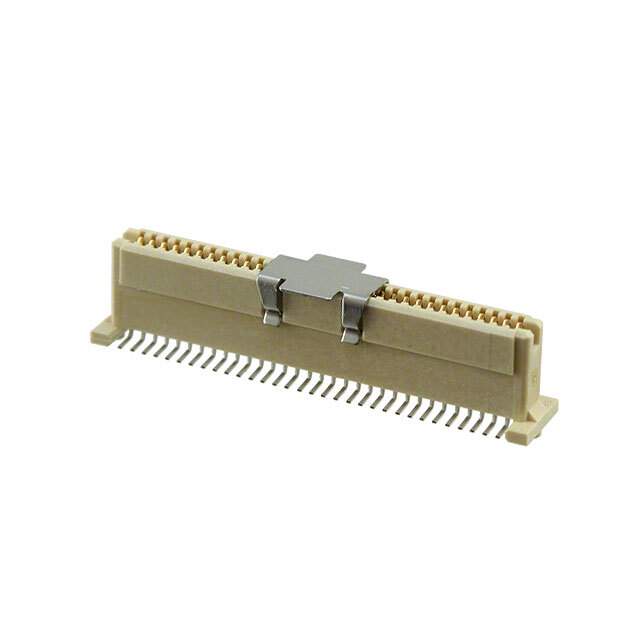

71439-2464 Real Image
Same model may have multiple batches, images only for reference.

71439-2464

Part No 71439-2464
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 1.00mm (.039") Pitch Mezzanine IEEE 1386 Receptacle, Surface Mount, Dual Row,Vertical Stacking, Embossed Tape on Reel, 0.76μm (30μ") Gold (Au), 64 Circuits Pick
Datasheet
71439-2464 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex Connector Corporation
Series Mezzanine 71439
Packaging Reel - TR
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 64
Pitch 0.039" (1.00mm)
Number of Rows 2
Mounting SMD
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Mated Stacking Heights 13mm
Height Above Board 0.327" (8.30mm)
Manufacturer Molex, LLC
Manufacturer Homepage www.molex.com
Win Source Part Number 721800-71439-2464
Popularity Medium
Supply and Demand Status Limited
Family Name 71439
Introduction Date June 30, 2010
ECCN EAR99
Country of Origin China, Republic of Korea, United States of America
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 71439-2464 CAD Model

Description

The Molex, LLC Connector Corporation 721800-71439-2464 electronic component is manufactured by Molex, LLC Connector Corporation.

  • Series: 71439
  • Packaging: Reel - TR
  • Positions: 64
  • Pitch: 0.039" (1.00mm)
  • Features: Board Guide
  • Connector Type: Receptacle, Outer Shroud Contacts
  • Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Mated Stacking Heights: 13mm
  • Height Above Board: 0.327" (8.30mm)
  • Mounting Type: SMD
  • Categories: Connectors, Interconnects
  • Supply and Demand Status: Limited
  • Halogen Free: Yes
  • EOL Date: 2026 (estimated)
  • ECCN: EAR99
  • Manufacturing Location: China, Republic of Korea, United States of America
