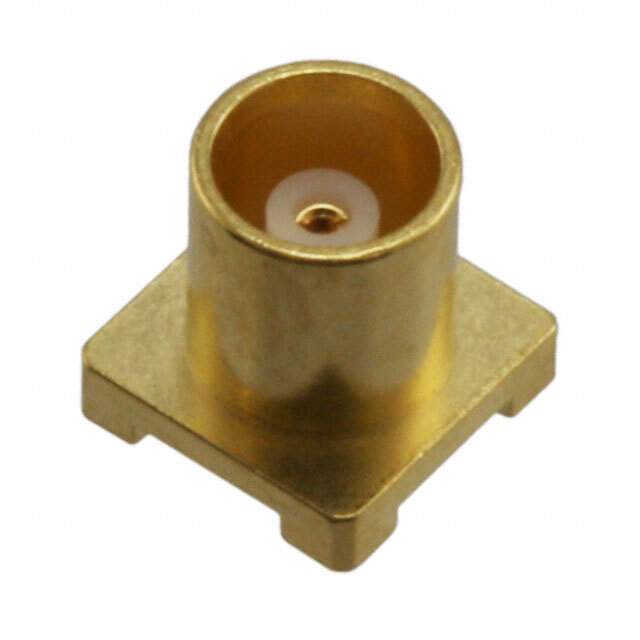

Same model may have multiple batches, images only for reference.

73415-1692

Name: 73415-1692
Brand: Molex, LLC
SKU: 987873
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	73415-1692
Manufacturer	Molex, LLC
Catalog	Coaxial Connectors (RF)
Description	Conn MCX RCP 0Hz to 6GHz 50Ohm Solder ST SMD Gold Over Nickel T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Body Material	Brass
Body Plating	Gold
Connector Type	Coaxial, Receptacle, Socket
Contact Material	Copper, Gold
Contact Plating	Gold
Country of Origin	TW
Depth	5.9 mm
Dielectric Material	PTFE
Fastening Type	Snap
Frequency	6 GHz
Gender	Female
Halogen Free	Low Halogen
Height	5.9 mm
Housing Color	Gold
Impedance	50 Ω
Insulation Material	Polytetrafluoroethylene
Length	5.9 mm
Max Frequency	6 GHz
Maximum Operating Temperature	155 °C
Min Operating Temperature	-55 °C
Mount	Surface Mount
Number of Contacts	1
Orientation	Straight
Packaging	Tape & Reel
Plating	Gold
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Termination	Solder
Voltage Rating	335 V
Win Source Part Number	987873-73415-1692
Categories	Coaxial Connectors(RF)
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 73415-1692 CAD Model

Alternative Products

Description

The supply and demand status of this component is short.

Impedance: 50 Ω
Maximum Frequency: 6 GHz
Contact Plating: gold
Body Plating: gold
Insulation Material: polytetrafluoroethylene
Body Material: brass
Lead-Free: yes
RoHS: compliant
Maximum Operating Temperature: 155 °C
