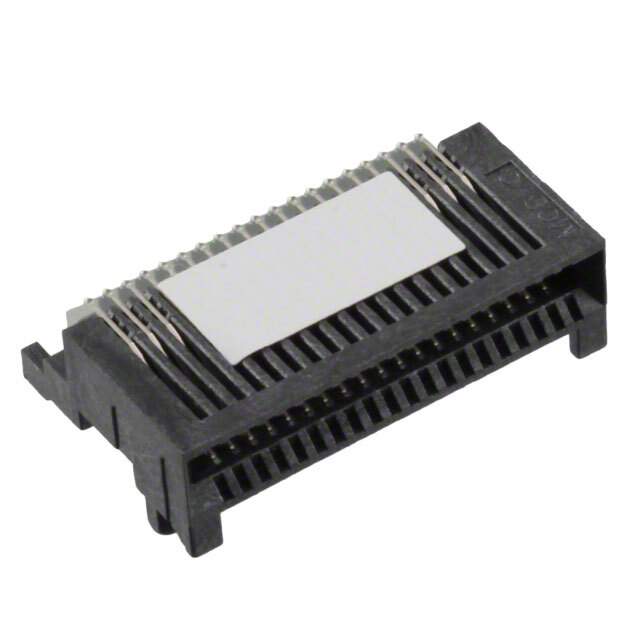

75586-0011 Real Image
Same model may have multiple batches, images only for reference.

75586-0011

Part No 75586-0011
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description Conn Rectangular RCP 37 POS 0.64mm Solder ST SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Material Copper
Contact Plating Gold
Country of Origin US
Current Rating 500 mA
Depth 11.5 mm
Flammability Rating UL94 V-0
Gender Female
Halogen Free Low Halogen
Housing Material Thermoplastic
Lead Free Yes
Lead Pitch 800 µm
Length 18.2 mm
Material Thermoplastic
Maximum Operating Temperature 80 °C
Max Voltage Rating (AC) 30 V
Max Voltage Rating (DC) 3.03 kV
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 38
Number of Contacts 38
Number of Ports 1
Number of Positions 38
Number of Rows 2
Number of Terminals 38
Orientation Right Angle
Packaging Cut Tape (CT)
Pitch 800 µm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8536695050, 8536695050
Shielding Unshielded
Termination Solder
Voltage Rating (AC) 30 V
Win Source Part Number 1040740-75586-0011
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 75586-0011 CAD Model

Description

The 75586-0011 is a 38-position, right-angle, female connector from Molex, LLC.

  • Positions: 38
  • Orientation: Right-Angle
  • Gender: Female
  • Pitch: 800 µm
  • Current Rating: 500 mA
  • Maximum Operating Temperature: 80 °C
  • RoHS Compliant: Yes
  • Halogen Content: Low
  • Category: OEM parts (0-9)
  • Supply and Demand Status: Shortage
