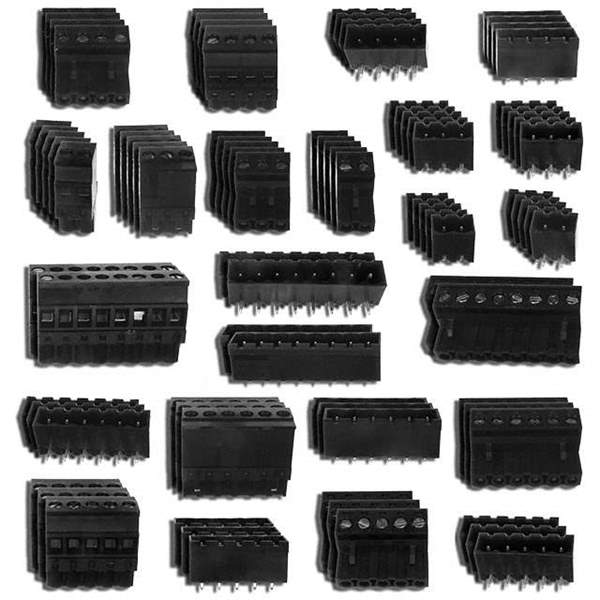

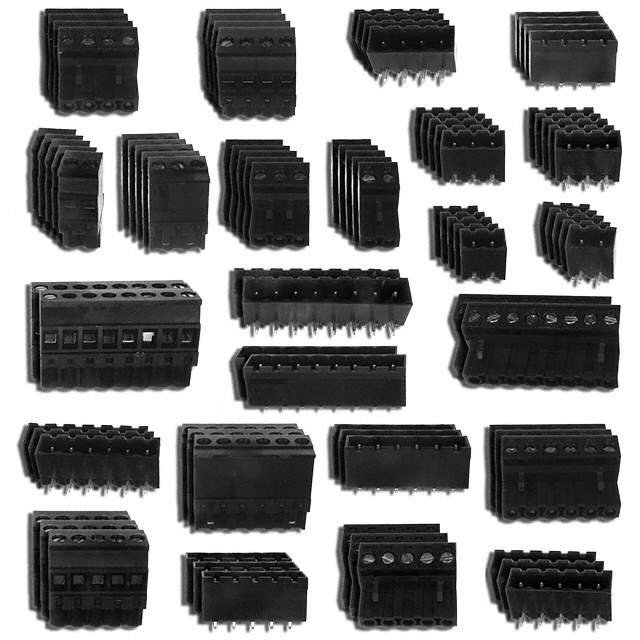

76650-0024 Real Image
Same model may have multiple batches, images only for reference.

76650-0024

Part No 76650-0024
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description Conn; Term Blk; Kit; EuroPluggable; 2; 3; 4; 6; 8; 5.08 mm; Dbl; 26-12AWG; 15A; 300V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Current Rating 15 A
Height 44.45 mm
Length 279.4 mm
Mount Through Hole
Number of Pins 68
Pitch 5.08 mm
RoHS Compliant
Termination Plug
Voltage Rating 300 V
Weight 680.388555 g
Width 635 mm
Wire/Cable Gauge 12 AWG
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 26 AWG
Win Source Part Number 1068001-76650-0024
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 76650-0024 CAD Model

Description

This Molex plug has a pitch of 5.08 mm and a termination of through hole.

  • Voltage Rating: 300V
  • Current Rating: 15A
  • Wire/Cable Gauge: 12 AWG
  • Pins: 68
  • Length: 279.4 mm
  • Height: 44.45 mm
  • Mounting: through hole
  • Wire Gauge: 26 AWG
  • Supply and Demand Status: short
