Same model may have multiple batches, images only for reference.

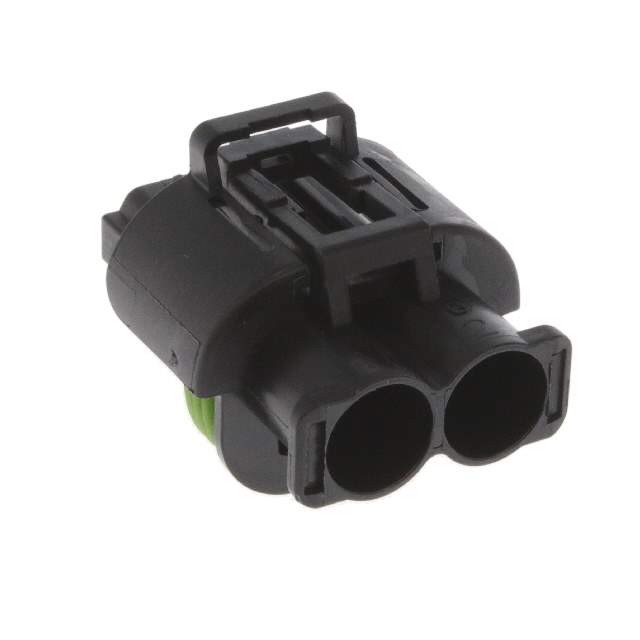

1544317-1 Real Image
Same model may have multiple batches, images only for reference.

1544317-1

Part No 1544317-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RCPT HSG 0.315 2POS BLACK  /  2 Position Housing Connector Female, Receptacle Black 0.315" (8.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Housings, Boots
Mfr TE Connectivity AMP Connectors
Series PRONER
Package Box
Style Housing
Terminal Type Quick Connect, Disconnect
Gender Female, Receptacle
Terminal Size 0.315" (8.00mm)
Number of Positions 2
Stacking Direction Side to Side
For Use With/Related Products 0.315" (8.00mm) Quick Connects
Mounting Type Free Hanging (In-Line)
Color Black
Material Polybutylene Terephthalate, Glass Filled
Note Contacts Not Included
Base Product Number 1544317
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Other Names -1544317-1-CSI,-P801038952602-LSI,-P801038952602-CSI,-P801038952602-LSI-ND,-P801038952602-SI-ND,-1544317-1-LSI,17-1544317-1,-1544317-1-SI,P801038952602,-P801038952602-SI,1544317-1-ND,-P801038952602-CSI-ND
Standard Package 750
Win Source Part Number 1003693-1544317-1
Ultra Librarian 3D Model Ultra Librarian 1544317-1 CAD Model

Description

The PRONER series female receptacle housing is a high-quality connector, designed for use with 0.315" (8.00mm) quick connects.

  • Series: PRONER
  • Connector Type: Female Receptacle Housing
  • Quick Connect Size: 0.315" (8.00mm)
  • Housing Material: Polybutylene Terephthalate, Glass Filled
  • Color: Black
  • Package: Box
  • Mounting Type: Free Hanging (In-Line)
  • Stacking: Side-to-Side
  • Contacts Included: No
  • Standard Package: 750
  • Terminal Type: Quick Connect, Disconnect
  • Terminal Size: 0.315" (8.00mm)
  • Stacking Direction: Side-to-Side
  • ECCN: EAR99
