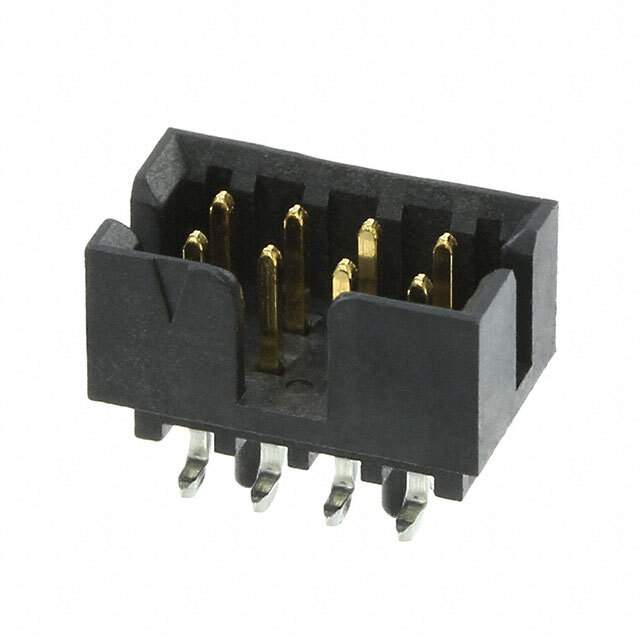

The Molex 87832-0820 is a Micro-Latch connector housing designed for secure and reliable wire-to-board or wire-to-wire connections. As part of the Molex Micro-Latch series, it's recognized for its compact design and robust locking mechanism, making it ideal for applications where space is limited and connection reliability is paramount.

Applications

• Consumer Electronics: Used in devices like laptops, digital cameras, and audio equipment for internal connections.
• Automotive: Found in automotive electronics for connecting sensors, control modules, and wiring harnesses.
• Industrial Automation: Employed in industrial equipment and machinery for robust and reliable signal and power connections.
• Medical Devices: Utilized in medical equipment where secure and compact connections are crucial for patient safety and device performance.
• Telecommunications: Used in telecommunications equipment for signal and data transmission.

Features

• Number of Circuits: 8
• Pitch: 1.25mm
• Housing Material: Durable plastic construction, typically with a UL 94V-0 flammability rating for safety.
• Color: Natural (usually white or off-white)
• Polarization: Prevents incorrect mating by ensuring proper orientation during connection.
• Latch Style: Micro-Latch provides a secure and audible click upon mating, confirming a reliable connection.

Benefits

• Space Saving: The compact 1.25mm pitch allows for high-density connections in applications with limited space.
• Reliable Connection: The Micro-Latch mechanism ensures a secure and dependable connection, reducing the risk of accidental disconnections, even in environments with vibration or movement.
• Easy Assembly: Designed for simple and efficient assembly with compatible Molex crimp terminals, streamlining the manufacturing process.
• Versatile: Suitable for a wide range of applications requiring compact and reliable connections.
• Durable: Constructed from high-quality materials, ensuring long-lasting performance and resistance to environmental factors.

Additional Details

The 87832-0820 connector housing is designed to be used with Molex Micro-Latch crimp terminals, which are crimped onto wires and then inserted into the housing. This provides a secure electrical and mechanical connection. The housing offers insulation and protection for the terminals and ensures accurate alignment when mated with a compatible header or receptacle on a printed circuit board (PCB).

The Micro-Latch system provides a tactile and audible click when the connector is fully engaged, giving the user confidence that the connection is secure. This is especially important in applications where maintaining a reliable connection is critical. The connector is suitable for automated assembly processes, contributing to increased manufacturing efficiency and reduced production costs.
