Same model may have multiple batches, images only for reference.

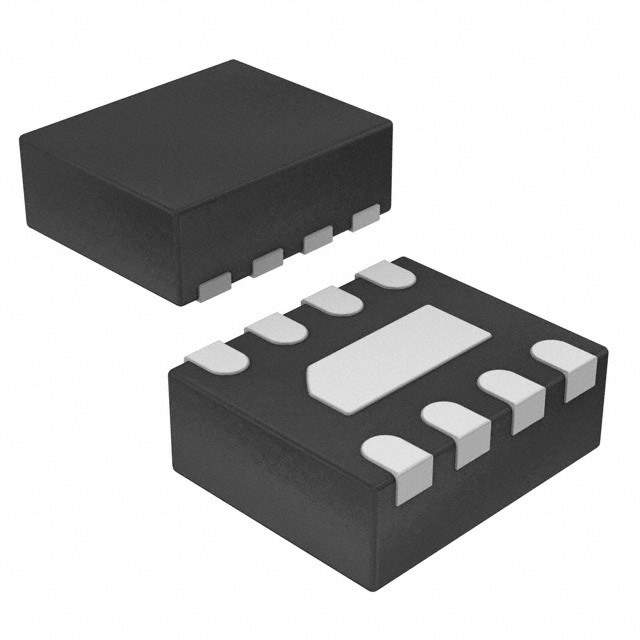

MP20041DGT-MS-LF-Z Real Image
Same model may have multiple batches, images only for reference.

MP20041DGT-MS-LF-Z

Part No MP20041DGT-MS-LF-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 2.8V/3.3V 8TQFN / Linear Voltage Regulator IC Positive Fixed 2 Output 300mA, 300mA 8-TQFN (2x2)
Datasheet
MP20041DGT-MS-LF-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Monolithic Power Systems Inc.
Package Tape & Reel (TR)
Output Configuration Positive
Output Type Fixed
Number of Regulators 2
Voltage - Input (Max) 6V
Voltage - Output (Min/Fixed) 2.8V, 3.3V
Voltage Dropout (Max) 0.22V @ 300mA (Typ), -
Current - Output 300mA, 300mA
PSRR 72dB ~ 68dB (10kHz ~ 100Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 8-VFDFN Exposed Pad
Supplier Device Package 8-TQFN (2x2)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 5,000
Win Source Part Number 1130203-MP20041DGT-MS-LF-Z
Ultra Librarian 3D Model Ultra Librarian MP20041DGT-MS-LF-Z CAD Model

Description

The MP20041DGT-MS-LF-Z is a linear voltage regulator that features two fixed output voltages of 2.8V and 3.3V. Monolithic Power Systems Inc. manufactures it.

  • Output Voltages: 2.8V and 3.3V (fixed)
  • Maximum Input Voltage: 6V
  • Maximum Output Current: 300mA per regulator
  • Operating Temperature Range: -40°C to 125°C
  • Package: 8-VFDFN exposed pad
  • Protection: Overcurrent and overtemperature
  • PSRR: 72dB to 68dB (10kHz to 100Hz)
