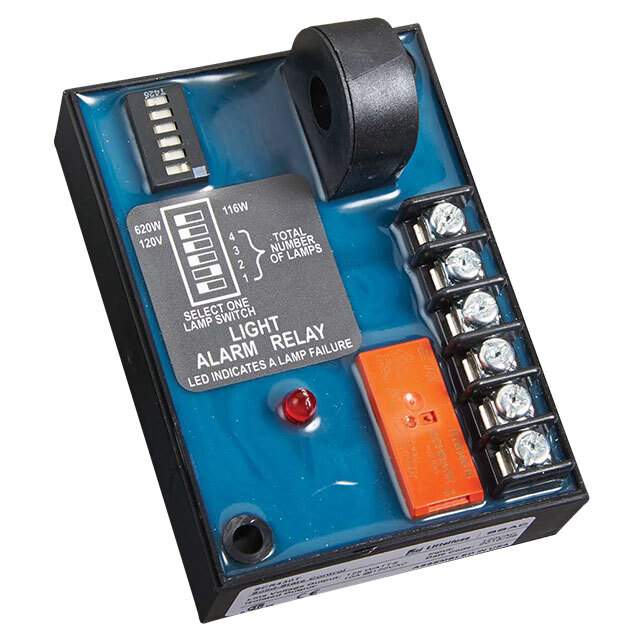

SCR430T Real Image
Same model may have multiple batches, images only for reference.

SCR430T

Part No SCR430T
Manufacturer Littelfuse Inc.
Catalog Monitor - Current/Voltage - Relay Output
Datasheet
SCR430T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Monitor - Relay Output
Mfr Littelfuse Inc.
Series SCR
Package Bulk
Delay Time Fixed, 6 Sec
Voltage - Supply 120VAC
Output Type Relay
Circuit SPDT (1 Form C)
Contact Rating @ Voltage 10A @ 240VAC/30VDC
Mounting Type Chassis Mount
Temperature Range - Operating -55°C ~ 65°C
Other Names -1024-SCR430T,F10648
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8537.10.9170
Win Source Part Number 1272485-SCR430T
Ultra Librarian 3D Model Ultra Librarian SCR430T CAD Model

Description

The Littelfuse Inc. SCR430T monitor with relay output is a reliable solution for industrial automation and controls applications.

  • Manufacturer: Littelfuse Inc.
  • Circuit: SPDT (1 Form C)
  • Contact Rating: 10A @ 240VAC/30VDC
  • Delay Time: Fixed 6 seconds
  • Voltage Supply: 120VAC
  • Mounting: Chassis mounted
  • Operating Temperature Range: -55°C to 65°C
  • Package: Bulk
  • ECCN: EAR99
