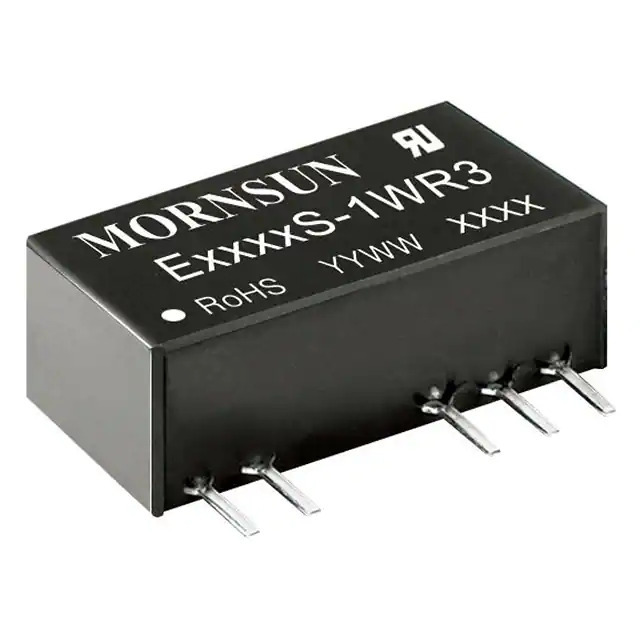

Same model may have multiple batches, images only for reference.

E2412S-1WR3

Get a Quote

Part No	E2412S-1WR3
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 1W
Sample
Rohs State	Need to verify
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Mornsun America, LLC
Series	E_S-1WR3 (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	42mA, 42mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	-
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	81%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Supplier Device Package	-
Control Features	-
Approval Agency	CB, CE, cURus, UL
Standard Number	62368-1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1372885-E2412S-1WR3
Ultra Librarian 3D Model	Ultra Librarian E2412S-1WR3 CAD Model

Alternative Products

Description

The E2412S-1WR3 (1W) is an isolated module DC-DC converter manufactured by Mornsun America, LLC.

Application: Board mount applications in the power supplies category
Operating Temperature: -40°C to 105°C (with derating)
Module Type: 7-SIP
Number of Leads: 5
Maximum Output Current: 42mA
Power Rating: 1W
Input Voltage Range: 21.6V to 26.4V
Output Voltages: 12V, -12V
Efficiency: 81%
Application: ITE (Commercial)
Voltage Isolation: 3 kV
Safety Standards: CB, CE, cURus, and UL
Product Status: Active
