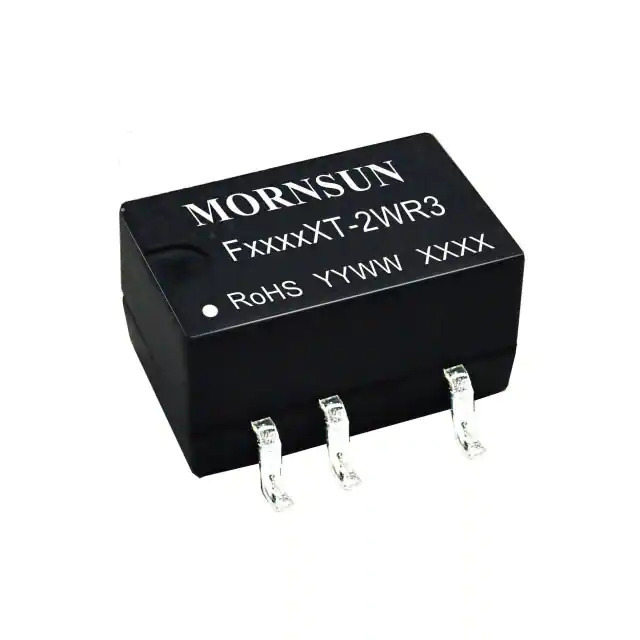

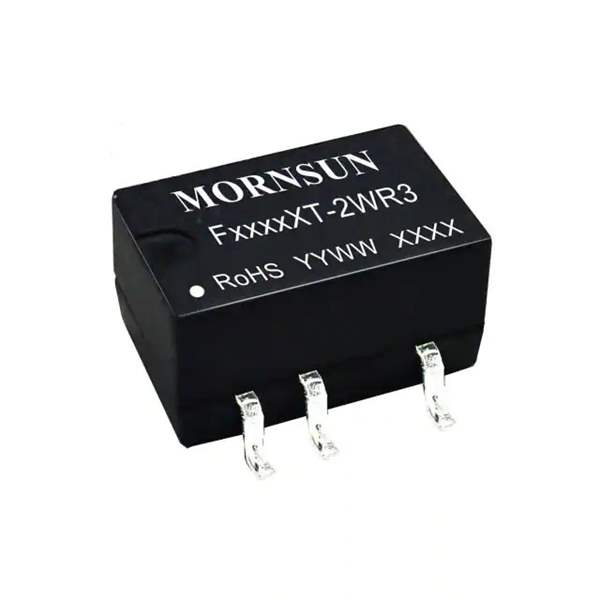

F2412XT-2WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

F2412XT-2WR3

Part No F2412XT-2WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 2W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series F_XT-2WR3 (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 12V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 167mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 84%
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Size / Dimension 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372949-F2412XT-2WR3
Ultra Librarian 3D Model Ultra Librarian F2412XT-2WR3 CAD Model

Description

The Mornsun America, LLC F_XT-2WR3 (2W) is a power supply module designed for board mount applications.

  • Operating Temperature: -40°C ~ 105°C with derating
  • Module Type: Isolated Module
  • Voltage - Isolation: 3 kV
  • Output Current: 167mA
  • Power (Watts): 2W
  • Voltage - Input: 21.6V ~ 26.4V
  • Package / Case: 8-SMD package with 5 leads
  • Mounting Type: Surface Mountable
  • Application: ITE (Commercial) applications
  • Approvals: CB, CE, cURus, and UL
  • Efficiency: 84%
  • Product Status: Active
