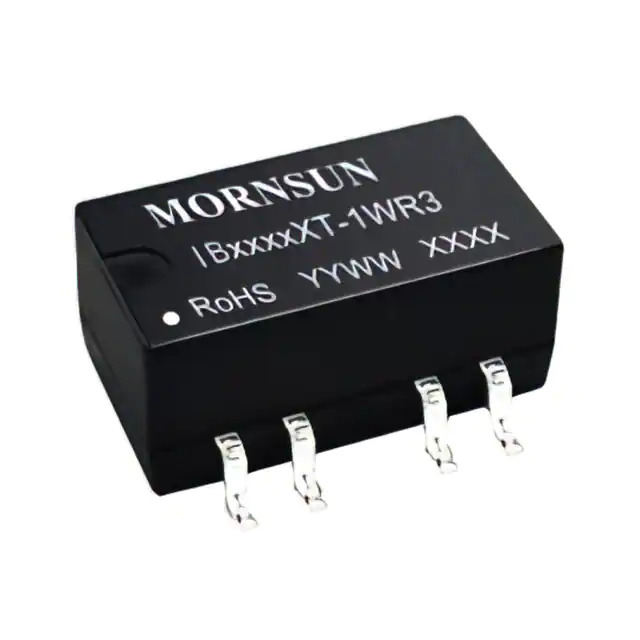

Same model may have multiple batches, images only for reference.
IB2405XT-1WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

IB2405XT-1WR3

Part No IB2405XT-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER / Isolated Module DC DC Converter 1 Output 5V 200mA 22.8V - 25.2V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series IB_XT-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 22.8V
Voltage - Input (Max) 25.2V
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 69%
Mounting Type Surface Mount
Package / Case 10-SMD Module, 6 Leads
Size / Dimension 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
Supplier Device Package -
Control Features -
Approval Agency -
Standard Number -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372925-IB2405XT-1WR3
Ultra Librarian 3D Model Ultra Librarian IB2405XT-1WR3 CAD Model

Description

The 1372925-IB2405XT-1WR3 is a DC-DC converter module designed for board mount applications. Manufactured by Mornsun America, LLC, this module is part of the IB_XT-1WR3 series and comes in a 10-SMD module with 6 leads.

  • Size / Dimension: 0.60" L x 0.33" W x 0.29" H
  • Operating Temperature: -40°C ~ 85°C
  • Voltage - Input (Min): 22.8V
  • Voltage - Input (Max): 25.2V
  • Voltage - Output 1: 5V
  • Current - Output (Max): 200mA
  • Power (Watts): 1W
  • Applications: ITE (Commercial)
  • Voltage - Isolation: 1.5kV
  • Efficiency: 69%
  • Mounting Type: Surface Mount
  • REACH Status: REACH Unaffected
