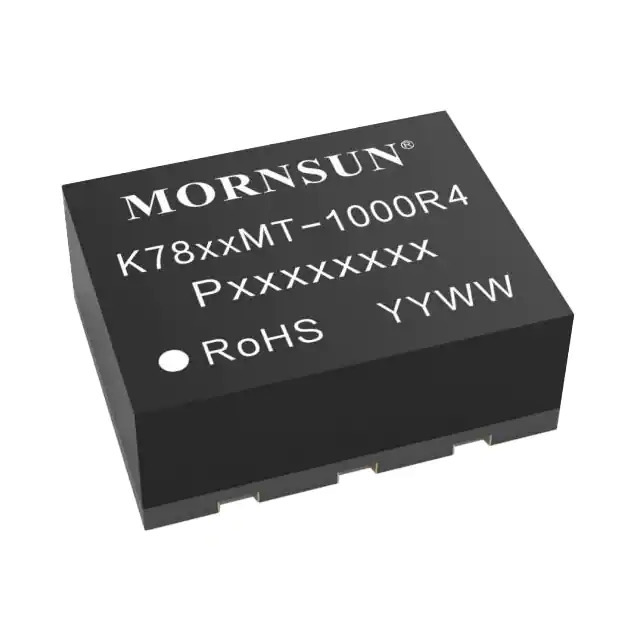

K7803MT-1000R4 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

K7803MT-1000R4

Part No K7803MT-1000R4
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series K78_MT-1000R4
Package Tape & Reel (TR)
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 2
Voltage - Input (Min) 4.75V, 8V
Voltage - Input (Max) 36V, 27V
Voltage - Output 1 3.3V
Voltage - Output 2 -3.3V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 1A, 500mA
Applications ITE (Commercial)
Features Adjustable Output
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 89%
Mounting Type Surface Mount
Package / Case 6-SMD Module
Size / Dimension 0.35" L x 0.28" W x 0.12" H (9.0mm x 7.0mm x 3.1mm)
Supplier Device Package -
Control Features -
Approval Agency CE
Standard Number 62368-1
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372663-K7803MT-1000R4
Ultra Librarian 3D Model Ultra Librarian K7803MT-1000R4 CAD Model

Description

The 1372663-K7803MT-1000R4 is a non-isolated PoL module DC-DC converter from Mornsun America, LLC.

  • Series: K78_MT-1000R4
  • Package: 6-SMD Module
  • Output: Adjustable
  • Application: ITE (Commercial)
  • Output Current (Max): 1A
  • Power (Watts): 9.75W
  • Input Voltage: 4.75V to 36V and 8V to 27V
  • Output Voltages: 3.3V and -3.3V
  • Efficiency: 89%
  • Approvals: CE
  • Size: 0.35" L x 0.28" W x 0.12" H
  • Temperature Range: -40°C to 105°C (with derating)
  • Product Status: Active
  • REACH: Unaffected
