Same model may have multiple batches, images only for reference.

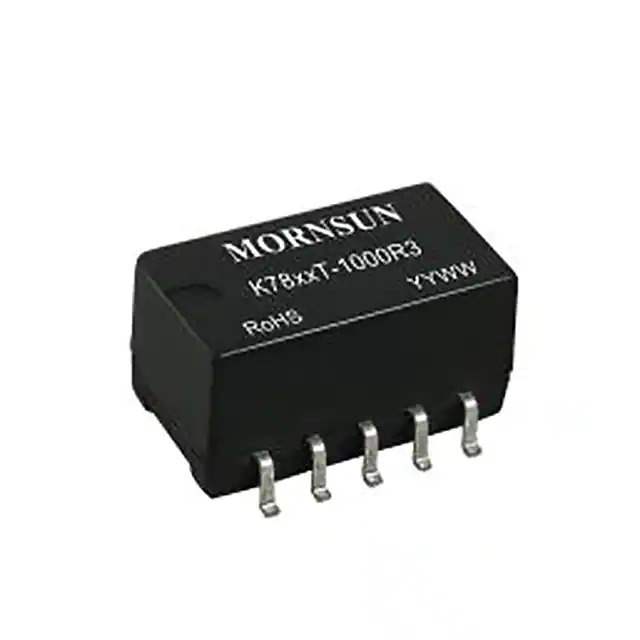

K7805T-1000R3 Real Image
Same model may have multiple batches, images only for reference.

K7805T-1000R3

Part No K7805T-1000R3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 5W / Linear Regulator Replacement DC DC Converter 1 Output 5V 1A 8V - 36V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series K7805T-1000R3
Package Tube
Product Status Active
Type Linear Regulator Replacement
Number of Outputs 1
Voltage - Input (Min) 8V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 1A
Power (Watts) 5 W
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 93%
Mounting Type Surface Mount
Package / Case 10-SMD Module, 8 Leads
Size / Dimension 0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm)
Approval Agency CE
Base Product Number K7805
Standard Package 32 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 848226-K7805T-1000R3
Ultra Librarian 3D Model Ultra Librarian K7805T-1000R3 CAD Model

Description

The K7805T-1000R3 is a 5W DC/DC converter from MORNSUN Science & Technology Ltd.

  • Series: K7805T-1000R3
  • Type: Linear Regulator Replacement
  • Features: Remote On/Off, SCP
  • Number of Outputs: 1
  • Power (Watts): 5W
  • Voltage - Output 1: 5V
  • Current - Output (Max): 1A
  • Voltage - Input: 8V ~ 36V
  • Size / Dimension: 0.60" L x 0.33" W x 0.32" H (15.3mm x 8.4mm x 8.2mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 85°C
  • Efficiency: 93%
  • Applications: ITE (Commercial)
  • Approvals: CE
