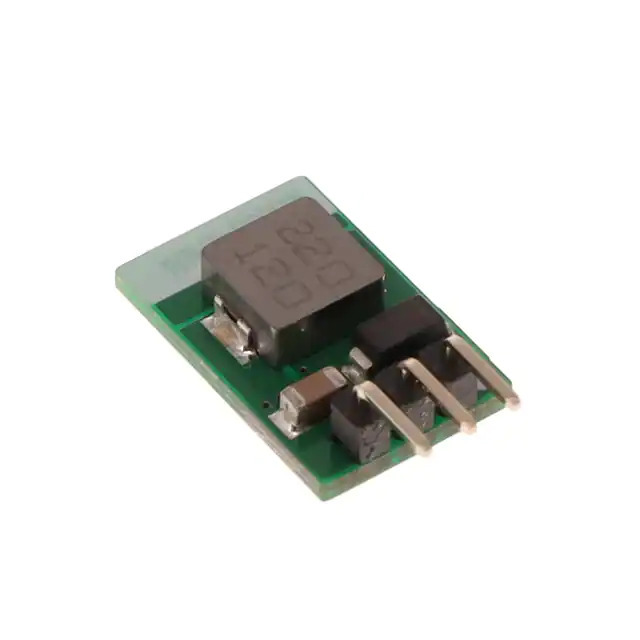

Same model may have multiple batches, images only for reference.
K78L12-1000R3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

K78L12-1000R3

Part No K78L12-1000R3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series K78Lxx-1000R3
Package Tray
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 2
Voltage - Input (Min) 8V, 16V
Voltage - Input (Max) 20V, 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 1A, 300mA
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 95%
Mounting Type Through Hole
Package / Case 3-SIP Module
Size / Dimension 0.45" L x 0.30" W x 0.69" H (11.5mm x 7.5mm x 17.5mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus
Standard Number 60950-1; 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372676-K78L12-1000R3
Ultra Librarian 3D Model Ultra Librarian K78L12-1000R3 CAD Model

Description

The K78L12-1000R3 is a non-isolated PoL (Point of Load) module manufactured by Mornsun America, LLC.

  • Series: K78Lxx-1000R3
  • Input Voltage Range: 8V to 20V
  • Output Voltages: 12V and -12V
  • Maximum Output Current: 1A and 300mA for the two outputs, respectively
  • Mounting Type: Through Hole
  • Package: 3-SIP Module
  • Application: ITE (Commercial)
  • Approval Agencies: CB, CE, and cURus
  • Efficiency: 95%
  • Size: 0.45" L x 0.30" W x 0.69" H
