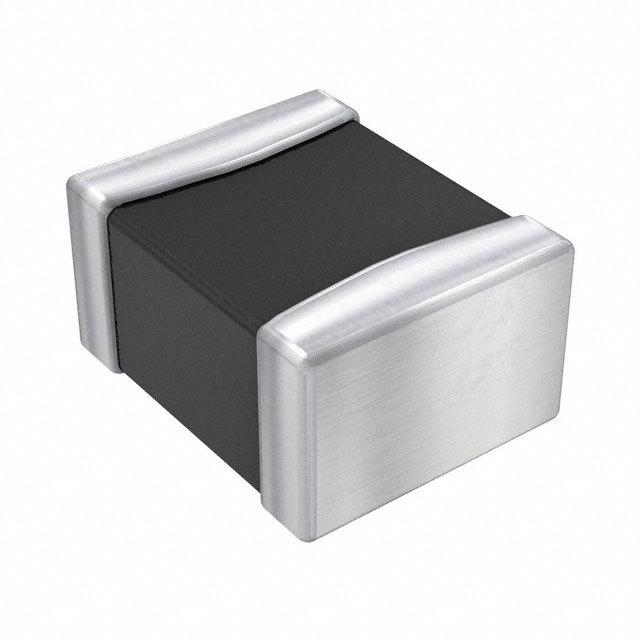

Same model may have multiple batches, images only for reference.

1239AS-H-6R0M=P2

Name: 1239AS-H-6R0M=P2
Brand: Murata Electronics North America
SKU: 760328
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1239AS-H-6R0M=P2
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 6UH 1.1A 275 MOHM SMD
Datasheet	1239AS-H-6R0M=P2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Murata Electronics North America
Series	DFE252012C
Packaging	Reel package
Type	Wirewound
Material - Core	Powdered Iron
Inductance	6μH
Tolerance	±20%
Current Rating	1.1A
Current - Saturation	1.4A
Shielding	Shielded
DC Resistance (DCR)	275 mOhm Max
Operating Temperature Range	-40°C ~ 85°C
Test Frequency	1MHz
Mounting	SMD
Package	1008 (2520 Metric)
Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum)	0.047" (1.20mm)
Win Source Part Number	760328-1239AS-H-6R0M=P2
Popularity	Medium
Supply and Demand Status	Balance
Family Name	DFE252012C
ECCN	EAR99
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 1239AS-H-6R0M=P2 CAD Model

Alternative Products

Description

The Murata Electronics North America 760328-1239AS-H-6R0M=P2 is a DFE252012C series shielded wirewound inductor with an inductance of 6μH and a maximum DC resistance (DCR) of 275 mOhm.

Inductance: 6μH
DC Resistance (DCR): 275 mOhm
Current Rating: 1.1A
Operating Temperature: -40°C to 85°C
Tolerance: ±20%
Package: 1008 (2520 Metric)
Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
