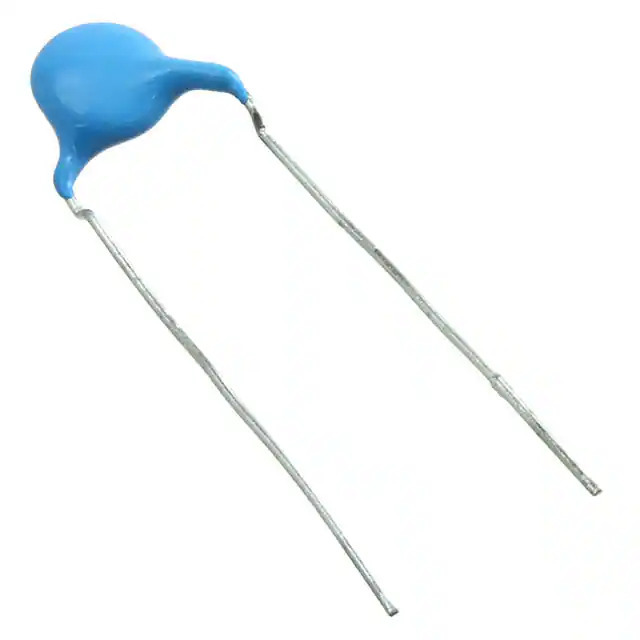

Same model may have multiple batches, images only for reference.
DE1E3RA472MA4BQ01F Murata Electronics North America
Same model may have multiple batches, images only for reference.

DE1E3RA472MA4BQ01F

Part No DE1E3RA472MA4BQ01F
Manufacturer Murata Electronics North America
Catalog Ceramic Capacitors
Description CAP CER / 4700 pF ±20% 500V Ceramic Capacitor E Radial, Disc
Datasheet
DE1E3RA472MA4BQ01F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Murata Electronics
Series DE1
Package Bulk
Product Status Active
Capacitance 4700 pF
Tolerance ±20%
Voltage - Rated 500V
Temperature Coefficient E
Temperature Range - Operating -40°C ~ 125°C
Features -
Ratings X1, Y1
Applications Safety
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.551" Dia (14.00mm)
Height - Seated (Max) 0.236" (6.00mm)
Thickness (Max) -
Lead Spacing 0.394" (10.00mm)
Lead Style Straight
Base Product Number DE1E3RA
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1360435-DE1E3RA472MA4BQ01F
Ultra Librarian 3D Model Ultra Librarian DE1E3RA472MA4BQ01F CAD Model

Description

The DE1E3RA472MA4BQ01F is a ceramic capacitor from Murata Electronics.

  • Series: DE1
  • Applications: Safety
  • Capacitance: 4700 pF
  • Voltage - Rated: 500V
  • Tolerance: ±20%
  • Ratings: X1, Y1
  • Lead Spacing: 0.394" (10.00mm)
  • Size / Dimension: 0.551" (14.00mm) Dia
  • Height - Seated (Max): 0.236" (6.00mm)
  • Lead Style: Straight
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C ~ 125°C
  • HTSUS: 8532.23.0060
  • ECCN: EAR99
  • Status: Active
  • REACH Status: REACH unaffected
