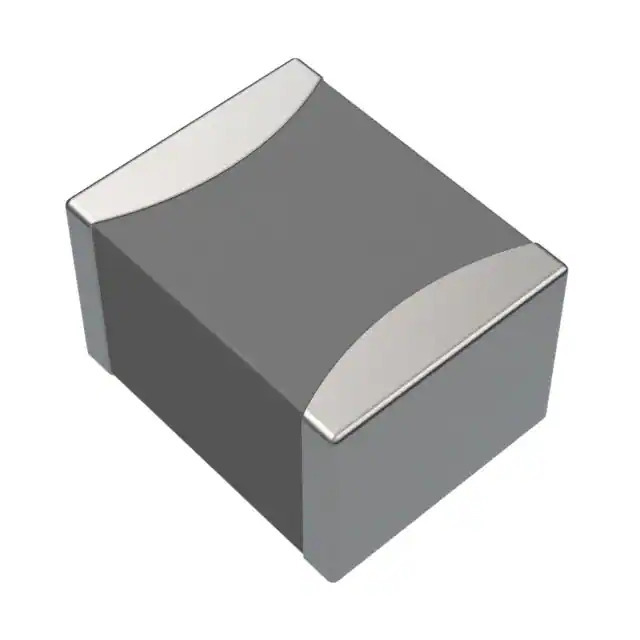

DFE322512F-1R5M=P2 Murata Electronics North America
Same model may have multiple batches, images only for reference.

DFE322512F-1R5M=P2

Part No DFE322512F-1R5M=P2
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 1.5UH 3A 48 MOHM SMD
Datasheet
DFE322512F-1R5M=P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics
Series DFE322512F
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 3.9A
Shielding Shielded
DC Resistance (DCR) 48mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number DFE322512F
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1369876-DFE322512F-1R5M=P2
Ultra Librarian 3D Model Ultra Librarian DFE322512F-1R5M=P2 CAD Model

Description

The Murata Electronics DFE322512F-1R5M=P2 is a surface mountable fixed inductor.

  • Inductance: 1.5 μH
  • Series: DFE322512F
  • Construction: Drum Core, Wirewound
  • Tolerance: ±20%
  • Temperature Range: -40°C to 125°C
  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height: 0.047" (1.20mm) Max
  • Shielded: Yes
  • Current Rating: 3A
  • DC Resistance: 48mOhm
