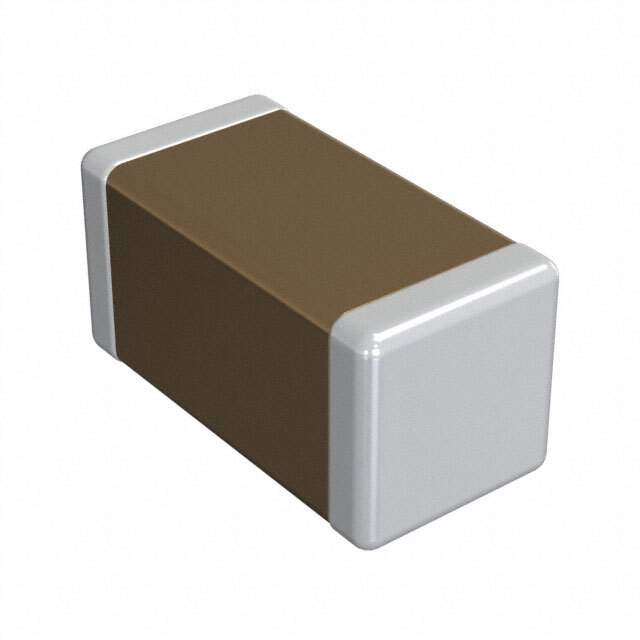

GRM188R61C106MAALD

Part No GRM188R61C106MAALD
Manufacturer Murata Electronics North America
Catalog Ceramic Capacitors
Description CAP CER 10UF 16V X5R 0603 / 10 µF ±20% 16V Ceramic Capacitor X5R 0603 (1608 Metric)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer Murata Electronics
Packaging Reel - TR
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 16V
Temperature Coefficient X5R
Temperature Range - Operating -55°C ~ 85°C
Applications General Purpose
Mounting Surface Mount, MLCC
Case / Package 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Thickness (Max) 0.037" (0.95mm)
Base Product Number GRM188R61C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 490-10729-1,490-10729-2,GRM188R61C106MAALD-ND,490-10729-6
Standard Package 4,000
Win Source Part Number 1330005-GRM188R61C106MAALD
Ultra Librarian 3D Model Ultra Librarian GRM188R61C106MAALD CAD Model

Description

The GRM188R61C106MAALD is a ceramic capacitor manufactured by Murata Electronics North America. It is a high-capacitance, high-reliability capacitor suitable for a wide range of applications where stable and reliable capacitance is needed.

Applications

  • Decoupling and bypass circuits in electronic devices
  • Smoothing circuits in power supplies
  • Noise filtering in signal lines
  • Mobile phones
  • Wireless communication devices
  • Digital cameras
  • Various consumer electronics

Features

  • High capacitance value (10µF)
  • Small size (1.6mm x 0.8mm) – 0603 inch size
  • Temperature characteristic: X5R (-55°C to +85°C, ±15% capacitance change)
  • Rated voltage: 16VDC
  • High reliability
  • Excellent solderability
  • RoHS compliant

Benefits

  • Provides stable and reliable capacitance over a wide temperature range
  • Reduces noise and improves signal integrity
  • Enables miniaturization of electronic devices
  • Contributes to improved power supply stability
  • Offers a long service life
  • Environmentally friendly due to RoHS compliance

Additional Details

The GRM188R61C106MAALD is a multilayer ceramic capacitor (MLCC). MLCCs are known for their small size, high capacitance, and excellent electrical characteristics. This particular capacitor has an X5R temperature characteristic, meaning its capacitance changes by no more than ±15% over the temperature range of -55°C to +85°C. The capacitor has a rated voltage of 16VDC, meaning it can safely operate at voltages up to 16 volts DC. Its compact 0603 package size makes it suitable for high-density circuit board designs. The termination is Sn (Tin) plating, ensuring good solderability.
