Same model may have multiple batches, images only for reference.

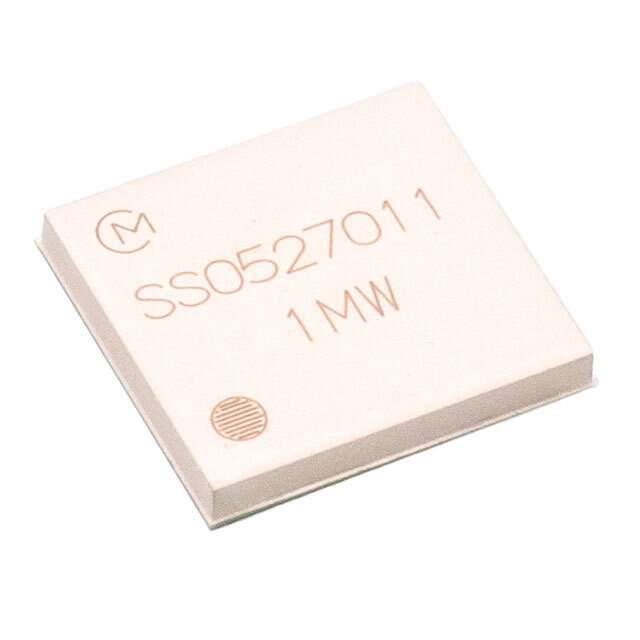

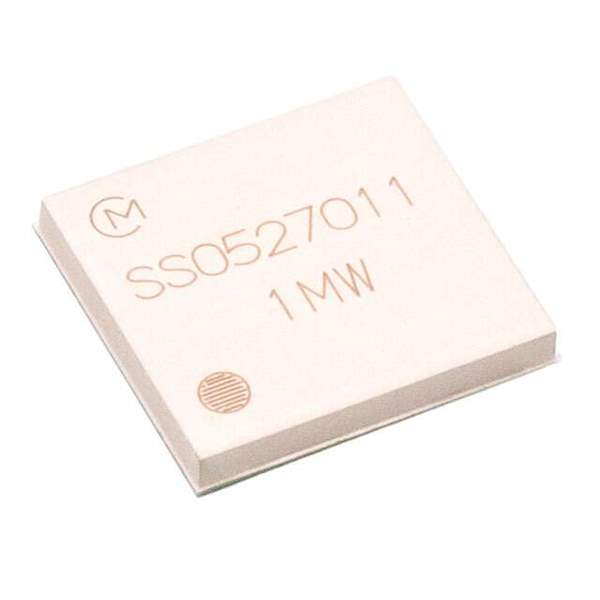

LBEE5HY1MW-230 Real Image
Same model may have multiple batches, images only for reference.

LBEE5HY1MW-230

Part No LBEE5HY1MW-230
Manufacturer Murata Electronics North America
Catalog RF Receivers
Description RX TXRX MOD WIFI SURFACE MOUNT / Bluetooth, WiFi 802.11a/b/g/n/ac, Bluetooth v5.0 Transceiver Module 2.4GHz, 5GHz Antenna Not Included Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Murata Electronics
Series WICED
Package Tape & Reel
RF Family/Standard Bluetooth, WiFi
Protocol 802.11a/b/g/n/ac, Bluetooth v5.0
Modulation CCK, DSSS, OFDM
Frequency 2.4GHz, 5GHz
Data Rate 433Mbps
Serial Interfaces SDIO, UART
Antenna Type Antenna Not Included
Utilized IC / Part CYW43455
Voltage - Supply 3.2V ~ 4.2V
Mounting SMD (SMT)
Temperature Range - Operating -30°C ~ 85°C
Package / Case Module
Base Product Number LBEE5
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Other Names 490-18383-1,490-18383-2,490-18383-6
Standard Package 1,000
Win Source Part Number 1150816-LBEE5HY1MW-230
Ultra Librarian 3D Model Ultra Librarian LBEE5HY1MW-230 CAD Model

Description

The Murata LBEE5HY1MW-230 is an RF transceiver module and modem product in the WICED series. It operates @ a frequency of 2.4GHz and 5GHz with a protocol of 802.11a/b/g/n/ac and Bluetooth v5.0.

  • Frequency: 2.4GHz and 5GHz
  • Protocol: 802.11a/b/g/n/ac and Bluetooth v5.0
  • Data Rate: 433Mbps
  • Mounting: SMD (SMT)
  • Packaging: Tape & Reel
