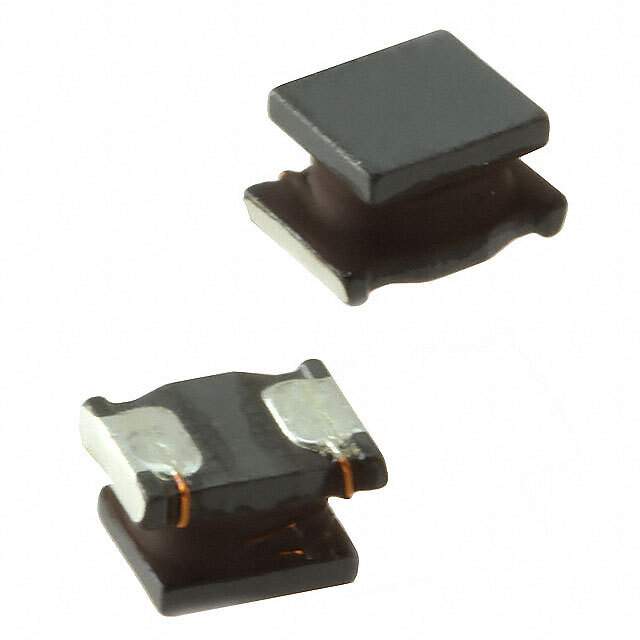

LQH43PB220M26L Real Image
Same model may have multiple batches, images only for reference.

LQH43PB220M26L

Part No LQH43PB220M26L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 22UH 780MA 392.4 MOHM / Inductor Power Chip Shielded Wirewound 22uH 20% 1MHz Ferrite 0.78A 0.3924Ohm DCR 1812 T/R
Datasheet
LQH43PB220M26L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series LQH43
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 400mA
Current - Saturation 700mA
Shielding Shielded
DC Resistance (DCR) 392.4 mOhm Max
Frequency - Self Resonant 15MHz
Operating Temperature Range -40°C ~ 125°C
Test Frequency 1MHz
Mounting SMD
Package 1812 (4532 Metric)
Manufacturer Package 1812 (4532 Metric)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Maximum) 0.110" (2.80mm)
Win Source Part Number 780050-LQH43PB220M26L
Popularity Medium
Supply and Demand Status Limited
Family Name LQH43PB_26
Introduction Date May 22, 2013
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian LQH43PB220M26L CAD Model

Description

The LQH43PB220M26L is a wirewound inductor from Murata Electronics North America.

  • Shielded: Yes
  • Inductance: 22μH
  • Tolerance: ±20%
  • Current Rating: 400mA
  • Current-Saturation: 700mA
  • Frequency: 15MHz
  • DC Resistance: 392.4 mOhm Max
  • Core Material: Ferrite
  • Mounting: SMD
  • Package: 1812 (4532 Metric)
  • Height - Seated (Max): 0.110" (2.80mm)
  • Introduction Date: May 22, 2013
  • EOL Date: 2029
