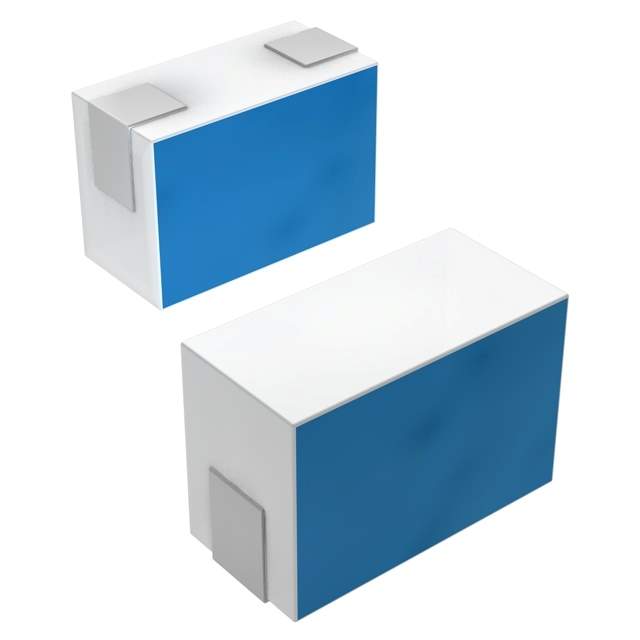

LQP03TG15NJ02D

Name: LQP03TG15NJ02D
Brand: Murata Electronics North America
SKU: 1115804
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LQP03TG15NJ02D
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 15NH 170MA 1.9 OHM SMD / 15 nH Unshielded Thick Film Inductor 170 mA 1.9Ohm Max 0201 (0603 Metric)
Datasheet	LQP03TG15NJ02D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Murata Electronics
Series	LQP03
Package	Tape & Reel
Type	Thick Film
Material - Core	Non-Magnetic
Inductance	15 nH
Tolerance	±5%
Current Rating (Amps)	170 mA
Shielding	Unshielded
DC Resistance (DCR)	1.9Ohm Max
Q @ Freq	11 @ 500MHz
Frequency - Self Resonant	3.1GHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	500 MHz
Mounting	SMD (SMT)
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201 (0603 Metric)
Dimension	0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max)	0.013" (0.33mm)
Base Product Number	LQP03TG
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	490-12895-6,LQP03TG15NJ02DINACTIVE,LQP03TG15NJ02D-ND,490-12895-2,490-12895-1
Standard Package	15,000
Win Source Part Number	1115804-LQP03TG15NJ02D
Ultra Librarian 3D Model	Ultra Librarian LQP03TG15NJ02D CAD Model

Alternative Products

Description

The LQP03TG15NJ02D inductor is an unshielded, thick film type fixed inductor from Murata Electronics.

Inductance: 15 nH
Tolerance: ±5%
Q @ Freq: 11 @ 500MHz
Frequency Self-Resonant: 3.1GHz
DC Resistance (DCR): 1.9Ohm Max
Package/Case: 0201 (0603 Metric)
Mounting: SMD (SMT) technology
Temperature Range: -55°C ~ 125°C
Dimension: 0.024" L x 0.012" W (0.60mm x 0.30mm)
Current Rating: 170 mA
Application: General-purpose circuits, filtering, and power supply circuits
