Same model may have multiple batches, images only for reference.

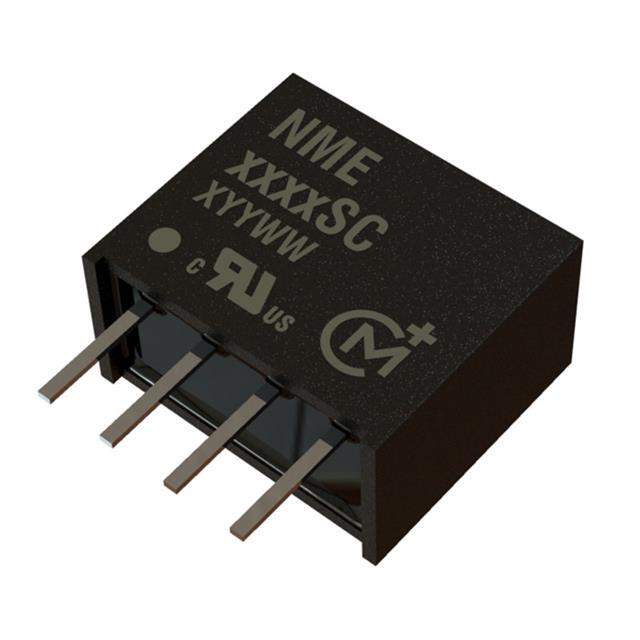

NME0505SC Real Image
Same model may have multiple batches, images only for reference.

NME0505SC

Part No NME0505SC
Manufacturer Murata Electronics North America
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 5VIN 1-OUT 5V 0.2A 1W 4-Pin SIP Module Tube / CONV DC/DC 1W 5VIN 5VOUT SIP SGL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Electronics North America
Standard Package 35
Category Power Supplies - Board Mount
Family DC DC Converters
Series NME
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 4-SIP Module
Size / Dimension 0.45" L x 0.24" W x 0.39" H (11.4mm x 6.1mm x 9.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 69%
Power (Watts) - Max 1W
Catalog NME Series
Win Source Part Number 085861-NME0505SC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name NME0505
Introduction Date March 03, 2008
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NME0505SC CAD Model

Description

The NME0505SC electronic component is manufactured by Murata Electronics North America.

  • Category: Power supplies - board mount
  • Type: DC DC converter
  • Series: NME
  • Packaging: Tube
  • Supply and Demand Status: Limited
  • Operating Temperature: -40°C to 85°C
  • Size/Dimensions: 0.45" L x 0.24" W x 0.39" H (11.4mm x 6.1mm x 9.9mm)
  • Application: ITE (Commercial)
  • Voltage Isolation: 1kV (1000V)
  • Number of Outputs: 1
  • Maximum Output Current: 200mA
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage: 5V
  • Power: 1W
  • Efficiency: 69 percent
