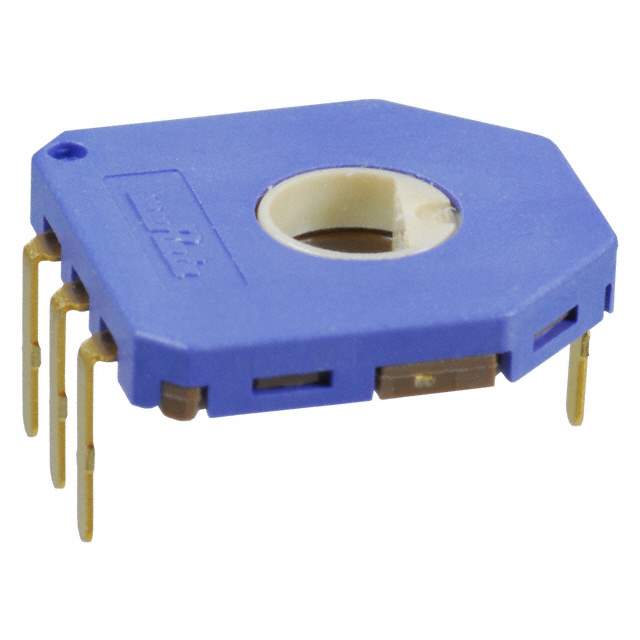

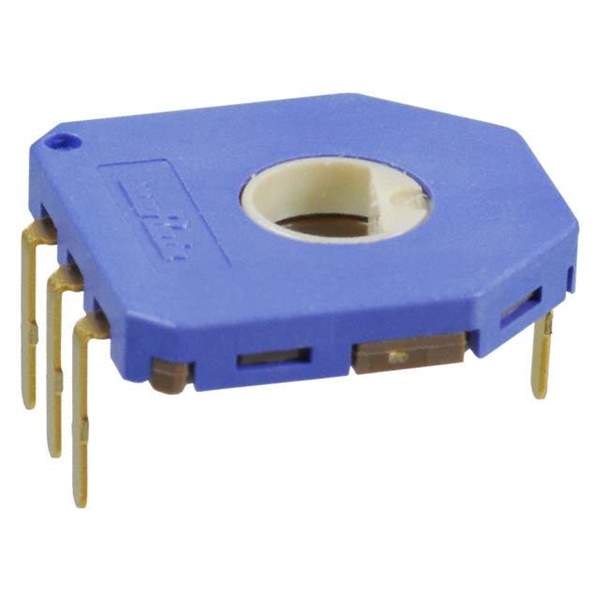

SV01L103AEA11T00 Real Image
Same model may have multiple batches, images only for reference.

SV01L103AEA11T00

Part No SV01L103AEA11T00
Manufacturer Murata Electronics North America
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ROTARY 333.3DEG WIRE LEAD / Resistive Sensor Rotary Position Hole for Shaft Wire Leads
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Position Sensors - Angle, Linear Position Measuring
Mfr Murata Electronics
Series SV01
Package Tape & Reel (TR)
Product Status Obsolete
For Measuring Rotary Position
Technology Resistive
Rotation Angle - Electrical, Mechanical 0° ~ 333.3°, Continuous
Output Analog Voltage
Actuator Type Hole for Shaft
Linearity ±2%
Resistance 10 kOhms
Resistance Tolerance ±30%
Mounting Type Through Hole
Termination Style Wire Leads
Temperature Range - Operating -40°C ~ 85°C
Package / Case 3-SIP Module
Base Product Number SV01L103
Other Names 490-3913
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1234888-SV01L103AEA11T00
Ultra Librarian 3D Model Ultra Librarian SV01L103AEA11T00 CAD Model

Description

The SV01L103AEA11T00 is a resistive position sensor from Murata Electronics that is designed for rotary position measurement.

  • Actuator Type: hole for shaft
  • Electrical and Mechanical Rotation Angle: 0 to 333.3 degrees
  • Output: analog voltage
  • Resistance: 10 kOhms
  • Tolerance: ±30%
  • Linearity: ±2%
  • Operating Temperature Range: -40°C to 85°C
  • Package: 3-SIP module
  • Mounting Style: through-hole
  • Suitable for: automotive, industrial, and medical applications
