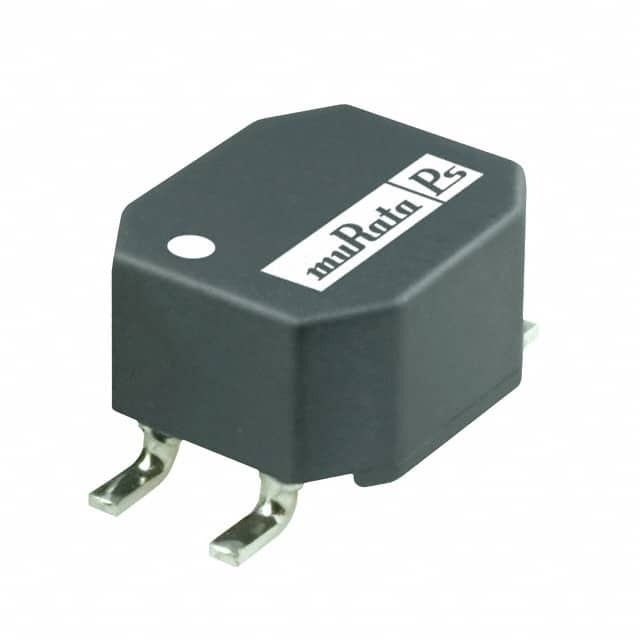

Same model may have multiple batches, images only for reference.
50225C
Same model may have multiple batches, images only for reference.

50225C

Part No 50225C
Manufacturer Murata Power Solutions Inc.
Catalog Common Mode Chokes
Description CMC 2.2MH 500MA 2LN SMD / 2.2 mH @ 100 kHz 2 Line Common Mode Choke Surface Mount 500mA DCR 400mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Murata Power Solutions Inc.
Series 5000
Package Tape & Reel
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.2 mH @ 100 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 400mOhm
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.366" L x 0.232" W (9.30mm x 5.90mm)
Height (Max) 0.183" (4.65mm)
Package / Case Horizontal, 4 J-Lead
Base Product Number 50
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 856270-50225C
Ultra Librarian 3D Model Ultra Librarian 50225C CAD Model

Description

The 50225C is a common mode choke from Murata Power Solutions Inc.

  • Series: 5000
  • Application: Power line filtering
  • Maximum Current Rating: 500mA
  • Inductance: 2.2mH @ 100kHz
  • Package: Surface mount
  • Size: 0.366" L x 0.232" W
  • Temperature Range: -40°C to 85°C
