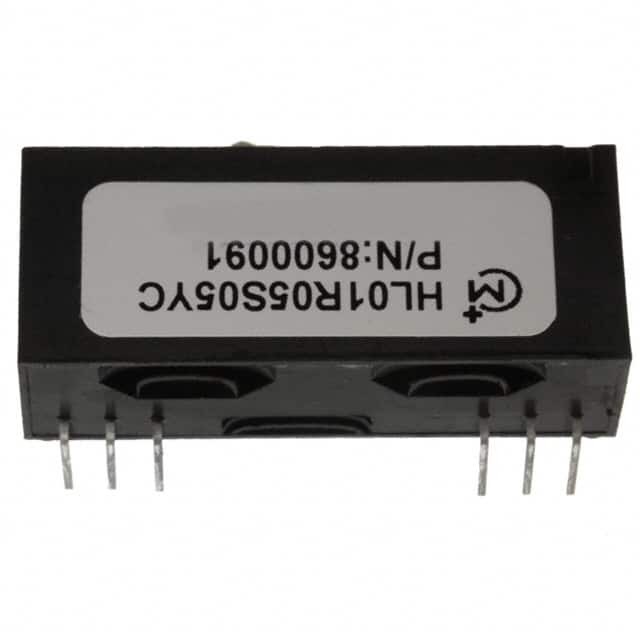

Same model may have multiple batches, images only for reference.

HL01R05S05YC

Name: HL01R05S05YC
Brand: Murata Power Solutions Inc.
SKU: 1013453
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	HL01R05S05YC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.75V - 5.25V Input
Datasheet	HL01R05S05YC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	HL01RYC (1W)
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.75V
Voltage - Input (Max)	5.25V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	58%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 12 Leads
Dimension	1.29" L x 0.53" W x 0.38" H (32.8mm x 13.5mm x 9.7mm)
Base Product Number	HL01R05
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	811-1747-5
Standard Package	15
Win Source Part Number	1013453-HL01R05S05YC
Ultra Librarian 3D Model	Ultra Librarian HL01R05S05YC CAD Model

Alternative Products

Description

The Murata Power Solutions Inc. HL01RYC is a 1W isolated module DC-DC converter designed for ITE (commercial) applications.

Manufacturer: Murata Power Solutions Inc.
Product Name: HL01RYC
Type: DC-DC Converter
Power: 1W
Application: ITE (commercial)
Standard Package: 15
Voltage Isolation: 500 V
Output: Single Output
Maximum Current: 200mA
Voltage Output: 5V
Efficiency: 58%
Temperature Range: -40°C to 85°C
Mounting Type: Through Hole
Package/Case: 24-DIP module, 12 leads
Dimensions: 1.29" L x 0.53" W x 0.38" H (32.8mm x 13.5mm x 9.7mm)
Product Status: Obsolete
ECCN: EAR99
