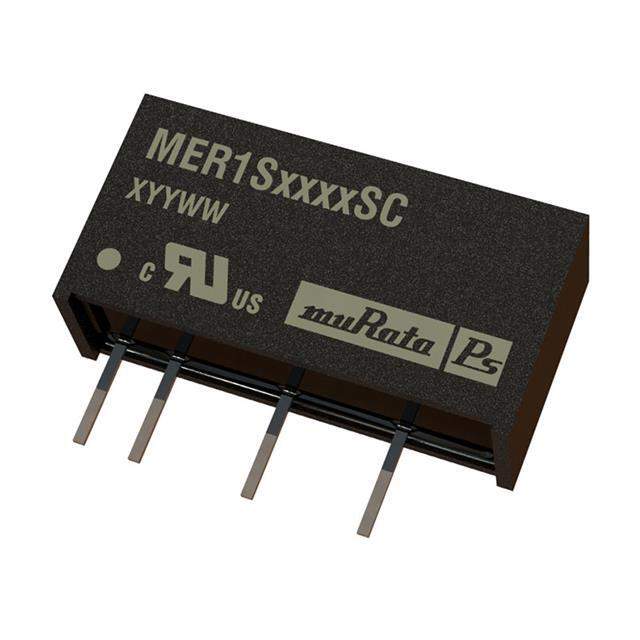

Same model may have multiple batches, images only for reference.

MER1S2405SC

Name: MER1S2405SC
Brand: Murata Power Solutions Inc.
SKU: 639036
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MER1S2405SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	1kVDC Isolated 1W Single Output DC/DC Converters
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Murata Power Solutions Inc.
Series	MER1
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Input Voltage MIN	22.6V
Voltage Input MAX	26.4V
Voltage - Output 1	5V
Current - Output (Maximum)	200mA
Power (Watts)	1W
Voltage - Isolation	1kV (1000V)
Applications	ITE (Commercial)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	84%
Mounting Style	Through Hole
Package	7-SIP Module, 4 Leads
Size	0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Win Source Part Number	1221724-MER1S2405SC
Manufacturer Homepage	www.murata-ps.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	MER1S2405
Introduction Date	September 15, 2009
Country of Origin	China
Halogen Free	Unknown
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian MER1S2405SC CAD Model

Alternative Products

Description

The MER1S2405SC is an isolated module from Murata Power Solutions Inc.

Power: 1W
Operating Temperature: -40°C to 85°C
Application: ITE (Commercial)
Voltage Isolation: 1kV (1000V)
Output Voltage: 5V
Efficiency: 84%
Maximum Output Current: 200mA
Package: 7-SIP module with four leads
Size: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
