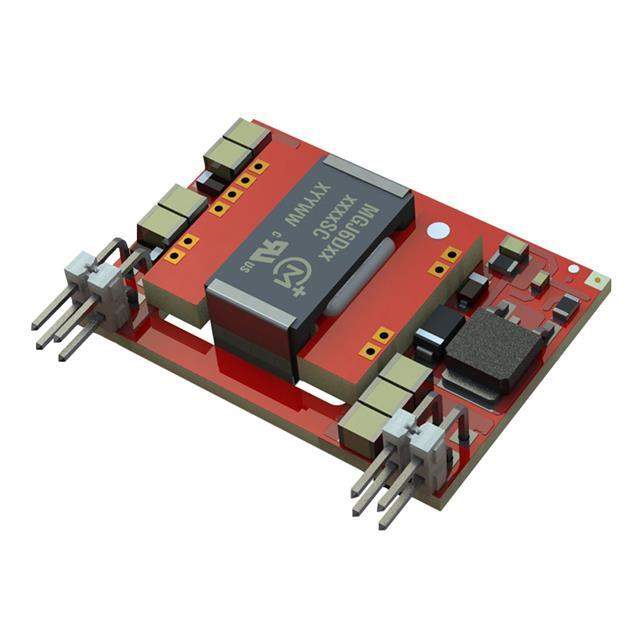

MGJ6D241505SC Real Image
Same model may have multiple batches, images only for reference.

MGJ6D241505SC

Part No MGJ6D241505SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V -5V 6W / Isolated Module DC DC Converter 2 Output 15V -5V 300mA, 300mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series MGJ6 (6W)
Package Tray
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -5V
Current - Output (Max) 300mA, 300mA
Power (Watts) 6 W
Voltage - Isolation 5.2 kV
Applications ITE (Commercial) , Medical
Features SCP, UVLO
Temperature Range - Operating -40°C ~ 105°C
Efficiency 82%
Mounting Type Through Hole
Package / Case 8-SIP Module
Size / Dimension 1.54" L x 0.43" W x 1.11" H (39.0mm x 11.0mm x 28.1mm)
Base Product Number MGJ6D24
Standard Package 30
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1351411-MGJ6D241505SC
Ultra Librarian 3D Model Ultra Librarian MGJ6D241505SC CAD Model

Description

The Murata Power Solutions Inc. MGJ6D241505SC is an isolated module DC DC converter with a power (watts) of 6W.

  • Voltage Input: 18V to 36V
  • Voltage Output: 15V and -5V
  • Power (Watts): 6W
  • Package: 8-SIP Module
  • Mounting Type: Through Hole
  • Series: MGJ6 (6W)
  • Category: Power Supplies - Board Mount - DC DC Converters
  • Operating Temperature: -40°C to 105°C
  • Supply and Demand Status: Limited
  • Standard Package: 30
  • Voltage Isolation: 5.2 kV
  • Efficiency: 82%
