Same model may have multiple batches, images only for reference.

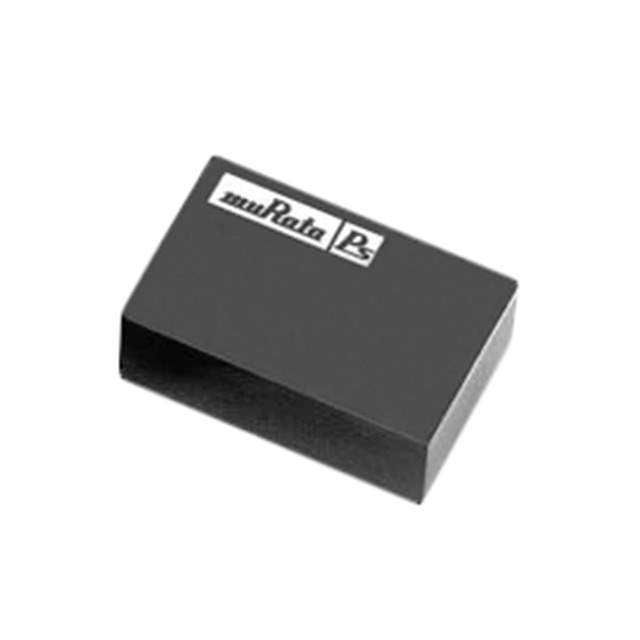

UST-5/500-D12-C Real Image
Same model may have multiple batches, images only for reference.

UST-5/500-D12-C

Part No UST-5/500-D12-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 3W / Isolated Module DC DC Converter 1 Output 5V 500mA 9V - 18V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 5V
Current - Output (Max) 500mA
Power (Watts) 3 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 75°C
Efficiency 74%
Mounting Through Hole
Case / Package 8-DIP Module
Size / Dimension 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm)
Base Product Number UST-5
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-3142-5,UST-5/500-D12-C-ND
Standard Package 112
Win Source Part Number 1336455-UST-5/500-D12-C
Ultra Librarian 3D Model Ultra Librarian UST-5/500-D12-C CAD Model

Description

The Murata Power Solutions Inc. UST-5/500-D12-C is an isolated module DC-DC converter.

  • Application: Power supplies and is mounted on boards
  • Packaging: Tube
  • Size: 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm)
  • Application: ITE (Commercial)
  • Power Output: 3W
  • Voltage Isolation: 1kV
  • Outputs: 1
  • Output Current: 500mA
  • Input Voltage: 9V to 18V
  • Output Voltage: 5V
  • Efficiency: 74%
  • Operating Temperature: -40°C ~ 75°C
