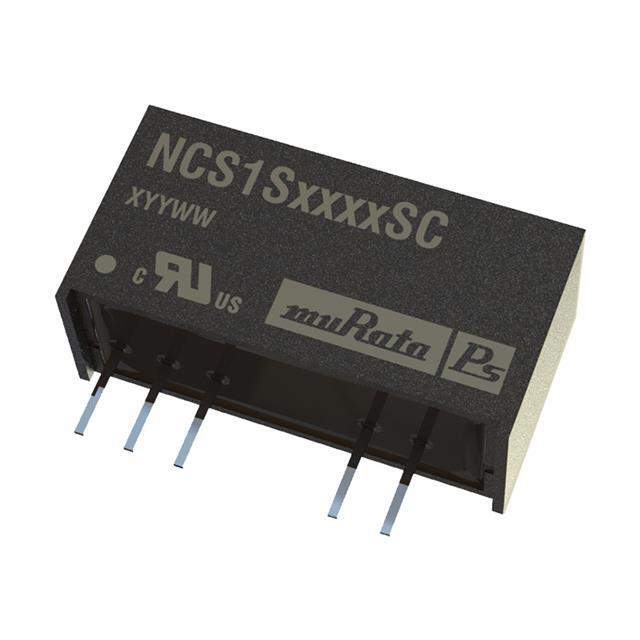

NCS1S2412SC Real Image
Same model may have multiple batches, images only for reference.

NCS1S2412SC

Part No NCS1S2412SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description Isolated 1W 4:1 Input Single Output DC/DC Converters
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NCS1
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 9V
Voltage Input MAX 36V
Voltage - Output 1 12V
Current - Output (Maximum) 83mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features SCP
Operating Temperature Range -40°C ~ 105°C
Efficiency 83%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Size 0.86" L x 0.32" W x 0.45" H (21.9mm x 8.2mm x 11.3mm)
Win Source Part Number 1230508-NCS1S2412SC
Manufacturer Homepage www.murata-ps.com
Popularity Medium
Supply and Demand Status Limited
Family Name NCS1S2412SC
Introduction Date February 17, 2014
Country of Origin China
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian NCS1S2412SC CAD Model

Description

The Murata Power Solutions Inc. NCS1S2412SC is an isolated module with a 1W power capacity.

  • Manufacturer: Murata Power Solutions Inc.
  • Type: Isolated Module
  • Power: 1W
  • Application: ITE (Commercial)
  • Voltage Isolation: 1kV (1000V)
  • Package: 7-SIP with 5 leads
  • Operating Temperature: -40°C to 105°C
  • SCP: Yes
  • Efficiency: 83%
  • Input Voltage Range: 9V to 36V
  • Maximum Output Current: 83mA
  • Series: NCS1
  • Size: 0.86" L x 0.32" W x 0.45" H (21.9mm x 8.2mm x 11.3mm)
  • Alternative Parts: SPU01N-12, RE-2412S/HP, AM1P-2412SZ
  • Introduction Date: February 17, 2014
  • Estimated EOL Date: 2025
