Same model may have multiple batches, images only for reference.

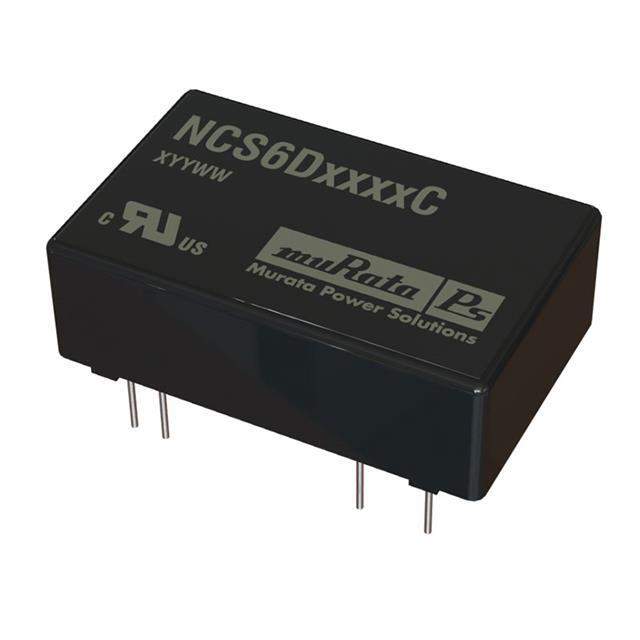

NCS6D1205C Real Image
Same model may have multiple batches, images only for reference.

NCS6D1205C

Part No NCS6D1205C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONVERT DC/DC +/-5V 600MA THRU / Module DC-DC 12VIN 2-OUT 5V/-5V 0.6A/-0.6A 6W 8-Pin Tube
Datasheet
NCS6D1205C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NCS6
Packaging Tube
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 9V
Voltage Input MAX 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Maximum) 600mA, 600mA
Power (Watts) 6W
Voltage - Isolation 1.5kV (1500V)
Applications ITE (Commercial)
Features UVLO
Operating Temperature Range -40°C ~ 85°C
Efficiency 82%
Mounting Style Through Hole
Package 24-DIP Module (600 mil, 8 Leads)
Dimension 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm)
Win Source Part Number 790632-NCS6D1205C
Popularity Medium
Supply and Demand Status Limited
Family Name NCS6D1205C
Introduction Date January 01, 2000
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian NCS6D1205C CAD Model

Description

The NCS6D1205C is an isolated module manufactured by Murata Power Solutions Inc.

  • Features: UVLO
  • Outputs: 2 (5V, -5V)
  • Supply and Demand: Limited
  • Win Source Part Number: 790632-NCS6D1205C
  • Category: Power Supplies - Board Mount
