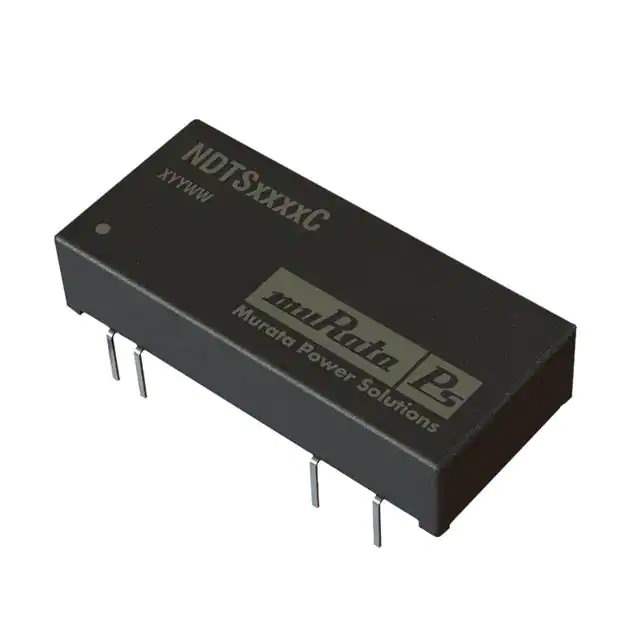

NDTS2405C Real Image
Same model may have multiple batches, images only for reference.

NDTS2405C

Part No NDTS2405C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 3W / Isolated Module DC DC Converter 1 Output 5V 600mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NDTS (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 600mA
Power (Watts) 3 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 24-DIP Module (600 mil, 8 Leads)
Size / Dimension 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm)
Base Product Number NDTS24
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648220-NDTS2405C
Ultra Librarian 3D Model Ultra Librarian NDTS2405C CAD Model

Description

The NDTS2405C is a 3W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NDTS series
  • Power: 3W
  • Application: power supplies in board mount applications
  • Size: 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm)
  • Voltage Isolation: 1 kV
  • Output: Single
  • Maximum Output Current: 600mA
  • Input Voltage Range: 18V to 36V
  • Output Voltage: 5V
  • Efficiency: 78%
  • Package: 24-DIP module with 8 leads
  • Mounting: Through-hole
  • Operating Temperature: -40°C to 85°C
  • Compliance: REACH regulations
  • HTSUS Code: 8504.40.9580
  • Application: ITE (Commercial)
