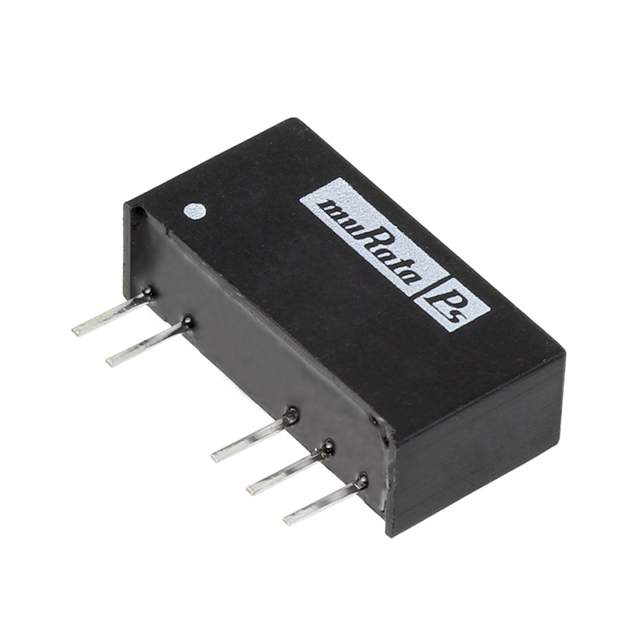

NMF0512SC Murata Power Solutions Inc.
Same model may have multiple batches, images only for reference.

NMF0512SC

Part No NMF0512SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 5VIN 12V SIP SGL
Datasheet
NMF0512SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Packaging Tube/Rail
Status Active
Type Isolated Module
Number of Outputs 1
Minimum Input Voltage 4.75V
Maximum Input Voltage 5.25V
Nominal Output Voltage 1 12V
Current - Output (Max) 83mA
Power (Watts) 1W
Isolation Voltage 1kV (1000V)
Applications ITE (Commercial)
Temperature Range - Operating 0°C to 70°C
Efficiency 62%
Mounting Through Hole
Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Win Source Part Number 045298-NMF0512S
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NMF0512SC CAD Model

Description

The NMF0512S series isolated module from Murata Power Solutions Inc. is designed for use in power supplies - board mount applications.

  • Packaging: Tube/rail
  • Mounting Type: Through hole
  • Power: 1W
  • Isolation Voltage: 1kV (1000V)
  • Number of Outputs: 1
  • Current - Output (max): 83mA
  • Efficiency: 62%
  • Temperature Range - Operating: 0°C to 70°C
  • Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
  • Maximum Input Voltage: 5.25V
  • Minimum Input Voltage: 4.75V
  • Nominal Output Voltage 1: 12V
  • Nominal Output Voltage 2: Not applicable
  • Nominal Output Voltage 3: Not applicable
  • MSL Level: 1 (unlimited)
  • Product is REACH: Unaffected
  • HTSUS: 8504.40.9580
