Same model may have multiple batches, images only for reference.

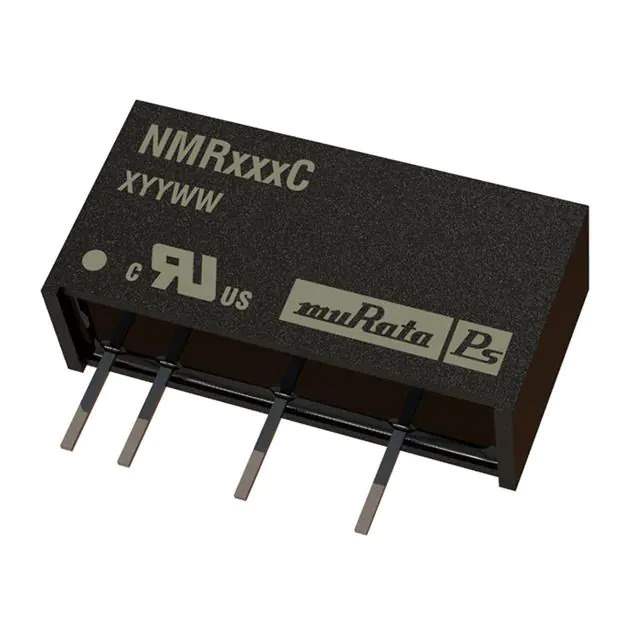

NMR120C Real Image
Same model may have multiple batches, images only for reference.

NMR120C

Part No NMR120C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMR (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 15V
Current - Output (Max) 67mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 80%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
Base Product Number NMR12
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649194-NMR120C
Ultra Librarian 3D Model Ultra Librarian NMR120C CAD Model

Description

The NMR120C is a 1W isolated module DC-DC converter from the NMR series by Murata Power Solutions Inc.

  • Application: Board mount power supply applications in commercial information technology equipment
  • Size: 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
  • Outputs: Single output
  • Maximum Output Current: 67mA
  • Input Voltage Range: 21.6V to 26.4V
  • Output Voltage: 15V
  • Efficiency: 80%
  • Voltage Isolation: 1kV
  • Mounting: Through hole
  • Package: 7-SIP Module, 4 Leads
  • Operating Temperature Range: -40°C to 85°C
  • Status: Active
