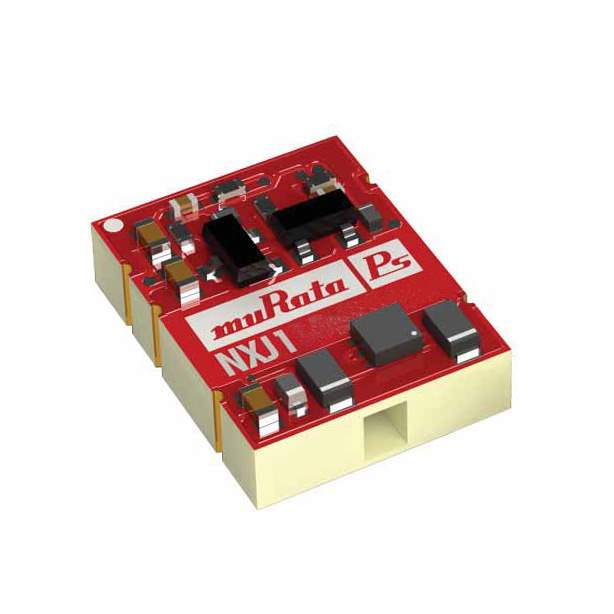

NXJ1S0505MC-R7 Real Image
Same model may have multiple batches, images only for reference.

NXJ1S0505MC-R7

Part No NXJ1S0505MC-R7
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W  /  Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Murata Power Solutions Inc.
Series NXJ1 (1W)
Package Tape & Reel
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 4.2 kV
Applications ITE (Commercial), Medical
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 73.5%
Mounting SMD (SMT)
Package / Case 14-SMD Module, 5 Leads
Dimension 0.54" L x 0.41" W x 0.17" H (13.7mm x 10.5mm x 4.4mm)
Base Product Number NXJ1S05
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 811-3094-2,811-3094-1,811-3094-6
Standard Package 180
Win Source Part Number 1083039-NXJ1S0505MC-R7
Ultra Librarian 3D Model Ultra Librarian NXJ1S0505MC-R7 CAD Model

Description

The NXJ1S0505MC-R7 is a 1W isolated module DC-DC converter designed for use in ITE (Commercial) and Medical applications.

  • Features: SCP
  • Voltage Isolation: 4.2 kV
  • Package: Tape and reel
  • Leads: 5
  • Maximum Output Current: 200mA
  • Voltage Output: 5V
  • Efficiency: 73.5%
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 0.54" L x 0.41" W x 0.17" H (13.7mm x 10.5mm x 4.4mm)
  • Manufacturer: Murata Power Solutions Inc.
