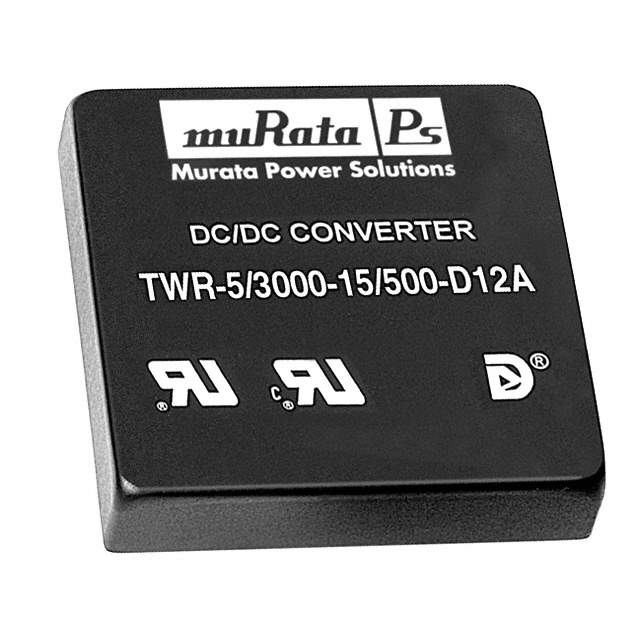

The TWR-5/3000-15/500-D12A-C from Murata Power Solutions Inc. is a highly efficient power supply solution with an isolated feature.

• Product Name: TWR-5/3000-15/500-D12A-C
• Manufacturer: Murata Power Solutions Inc.
• Feature: Isolated
• Application: Board Mount Modules
• Case / Package: DIP
• Operating Supply Voltage: 12 V
• Isolation Voltage: 1.5 kV
• Number of Outputs: 3
• Output Current: 3 A
• Voltage - Output 1: 5 V
• Voltage - Output 2: 15 V
• Voltage - Output 3: 15 V
• Efficiency: 82%
• Output Power: 20 W
• Dimension: 50.8 mm x 50.8 mm x 11.43 mm
• Weight: 77 g
• Number of Pins: 7
• Maximum Input Voltage: 36 V
• Minimum Input Voltage: 9 V
• Maximum Output Voltage: 15 V
• Nominal Input Voltage: 12 V
• Nominal Output Voltage: -12 V
• Current - Output 1: 3 A
• Current - Output 2: 500 mA
• Current - Output 3: 500 mA
• Lead-Free: Yes
• RoHS Compliant: Yes
• Radiation Hardening: No
• Maximum Operating Temperature: 100 °C
• Minimum Operating Temperature: -40 °C
• Schedule B: 8542390000
• REACH SVHC: No SVHC
