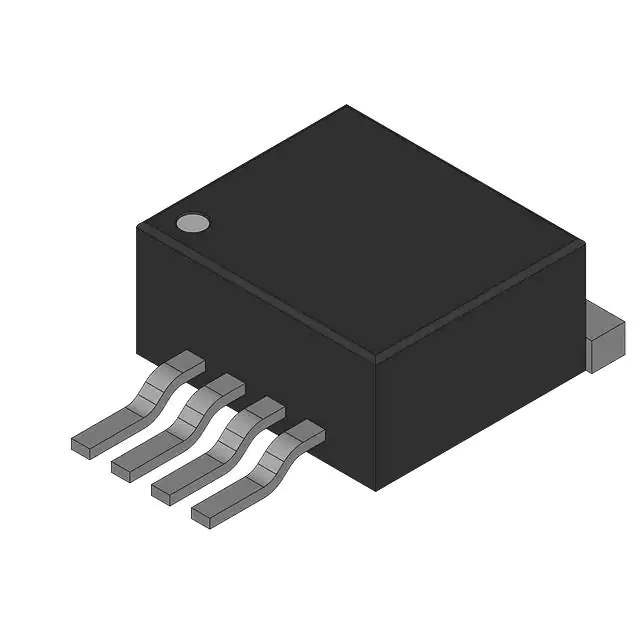

LP3966ES-5.0 Real Image
Same model may have multiple batches, images only for reference.

LP3966ES-5.0

Part No LP3966ES-5.0
Manufacturer National Semiconductor (TI)
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR FIXED LDO REG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr National Semiconductor (TI)
Package Bulk
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 7V
Voltage - Output (Min/Fixed) 5V
Voltage Dropout (Max) 1.2V @ 3A
Current - Output 3A
Current - Quiescent (Iq) 9 mA
Current - Supply (Max) 15 mA
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package DDPAK/TO-263-5
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 621062-LP3966ES-5.0
Ultra Librarian 3D Model Ultra Librarian LP3966ES-5.0 CAD Model

Description

The LP3966ES-5.0 is a linear voltage regulator designed for power management in various applications by National Semiconductor (TI).

  • Current Output: 3A
  • Output Type: Fixed
  • Control Feature: Enable
  • Voltage Input: 5V to 7V
  • Voltage Output: 5V
  • Mounting Type: Surface mount
  • Package: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
  • Supplier Device Package: DDPAK/TO-263-5
  • Operating Temperature Range: -40°C to 125°C
  • Protection Features: Over current, over temperature, and short circuit
  • Status: Active
