Same model may have multiple batches, images only for reference.

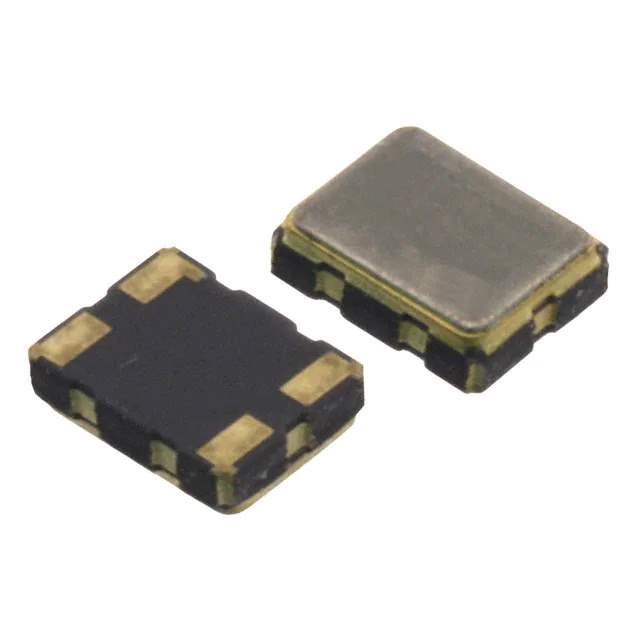

NT3225SA-26.000000MHZ Real Image
Same model may have multiple batches, images only for reference.

NT3225SA-26.000000MHZ

Part No NT3225SA-26.000000MHZ
Manufacturer NDK
Catalog Oscillators
Description XTAL OSC VCTCXO 26.0000MHZ SNWV
Datasheet
NT3225SA-26.000000MHZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr NDK
Series NT3225SA
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type VCTCXO
Frequency 26 MHz
Output Clipped Sine Wave
Voltage - Supply 3V
Frequency Stability ±2.5ppm
Temperature Range - Operating -30°C ~ 75°C
Current - Supply (Max) 1.5mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 844040-NT3225SA-26.000000MHZ
Ultra Librarian 3D Model Ultra Librarian NT3225SA-26.000000MHZ CAD Model

Description

The NT3225SA VCTCXO is a surface mount crystal oscillator with a frequency of 26 MHz.

  • Series: NT3225SA
  • Package: 4-SMD, no lead
  • Output: Clipped Sine Wave
  • Frequency: 26 MHz
  • Frequency Stability: ±2.5ppm
  • Voltage: 3V
  • Maximum Supply Current: 1.5mA
  • Size (L x W): 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height: 0.039" (1.00mm)
  • Operating Temperature: -30°C to 75°C
  • Manufacturer: NDK
  • Product Status: Obsolete
