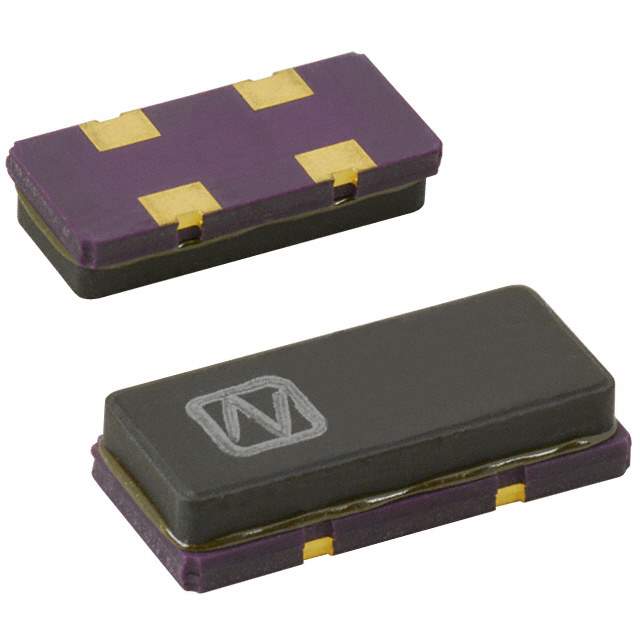

NX1255GB-6.000000MHZ Real Image
Same model may have multiple batches, images only for reference.

NX1255GB-6.000000MHZ

Part No NX1255GB-6.000000MHZ
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 6.0000MHZ 12PF SMD / 6 MHz ±50ppm Crystal 12pF 120 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr NDK America, Inc.
Series NX1255GB
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 6 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 120 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.465" L x 0.217" W (11.80mm x 5.50mm)
Height - Seated (Max) 0.104" (2.65mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Names NX1255GB-6.000000MHZ-STD-CSA-1,644-1004-6,50157430,NX1255GB6000000MHZ,644-1004-1,644-1004-2
Standard Package 1,000
Win Source Part Number 1212772-NX1255GB-6.000000MHZ
Ultra Librarian 3D Model Ultra Librarian NX1255GB-6.000000MHZ CAD Model

Description

The 1212772-NX1255GB-6.000000MHZ is a 6MHz crystal from the NX1255GB series from NDK America, Inc.

  • Frequency: 6MHz
  • Series: NX1255GB
  • Package: Tape and Reel
  • Mounting Type: SMD (SMT)
  • ESR: 120 Ohms
  • Frequency Stability: +/- 50ppm
  • Frequency Tolerance: +/- 50ppm
  • Load Capacitance: 12pF
  • Operating Mode: Fundamental
  • Package/Case: 4-SMD, no lead
  • Temperature Range: -10 degrees Celsius to 70 degrees Celsius
  • ECCN: EAR99 compliant
  • Product Status: Obsolete
