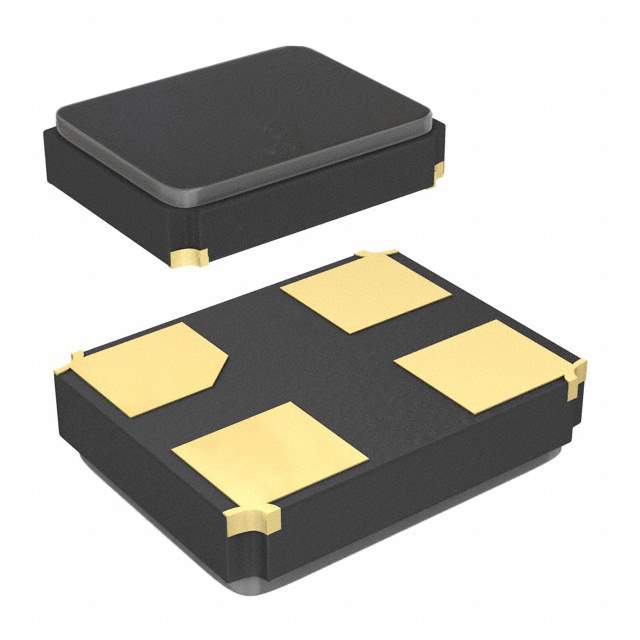

NX3225GA-30.000M-STD-CRG-2 Real Image
Same model may have multiple batches, images only for reference.

NX3225GA-30.000M-STD-CRG-2

Part No NX3225GA-30.000M-STD-CRG-2
Manufacturer NDK
Catalog Crystals
Description Crystal 30.0000MHZ 8PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
ESR (Equivalent Series Resistance) 50 Ω
Frequency 30 MHz
Frequency Stability 30 ppm
Frequency Tolerance 0.002 %
Height 889 µm
Length 3.2004 mm
Load Capacitance 8 pF
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
RoHS Compliant
Width 2.4892 mm
Win Source Part Number 1082991-NX3225GA-30.000M-STD-CRG-2
Categories Crystals
Manufacturer NDK
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian NX3225GA-30.000M-STD-CRG-2 CAD Model

Description

The NDK crystal is a high-quality crystal designed for use in electronic circuits.

  • Frequency: 30 MHz
  • Frequency Stability: 30 ppm
  • Frequency Tolerance: 0.002%
  • Load Capacitance: 8 pF
  • ESR (Equivalent Series Resistance): 50 Ω
  • Height: 889 µm
  • Width: 2.4892 mm
  • Length: 3.2004 mm
  • Mounting Type: SMD (SMT)
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -40 °C
  • Maximum Operating Temperature: 85 °C
  • Supply Status: Short supply
  • Popularity: Low
