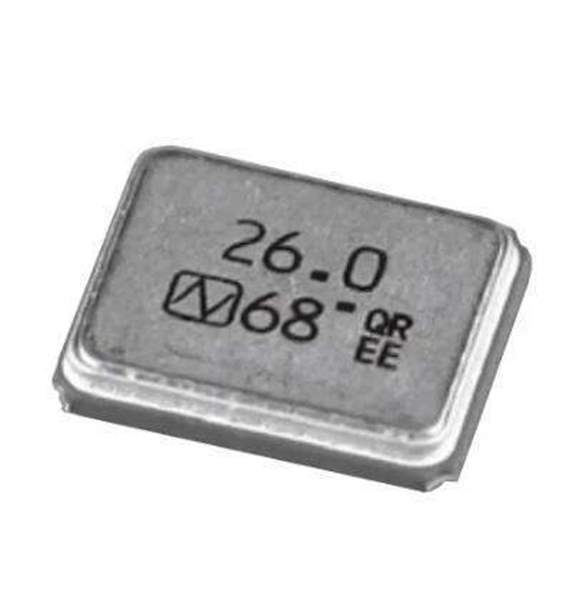

NX3225SA-12MHZ-STD-CSR-3 NDK
Same model may have multiple batches, images only for reference.

NX3225SA-12MHZ-STD-CSR-3

Part No NX3225SA-12MHZ-STD-CSR-3
Manufacturer NDK
Catalog Crystals
Description Crystals CRYSTAL 12MHZ 8PF SMD
Datasheet
NX3225SA-12MHZ-STD-CSR-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer NDK
Category Crystals
Frequency 12 MHz
Load Capacitance 8 pF
Tolerance 15 PPM
Frequency Stability 15 PPM
Package / Case 3.2 mm x 2.5 mm
Minimum Operating Temperature - 10 C
Maximum Operating Temperature + 75 C
Termination Style SMD/SMT
ESR 100 Ohms
Drive Level 10 uW
Length 3.2 mm
Width 2.5 mm
Height 0.55 mm
Series NX
Ultra Librarian 3D Model Ultra Librarian NX3225SA-12MHZ-STD-CSR-3 CAD Model

Description

Ideal for such as bluetooth, Wifi, smartphone and tablet pc.

  • Compact and thin. (3.2 × 2.5 × 0.55 mm typ.)
  • Excellent environmental characteristics, including heat and shock resistance.
  • Lead-free. Meets the requirements for re-flow profiling using lead-free solder
