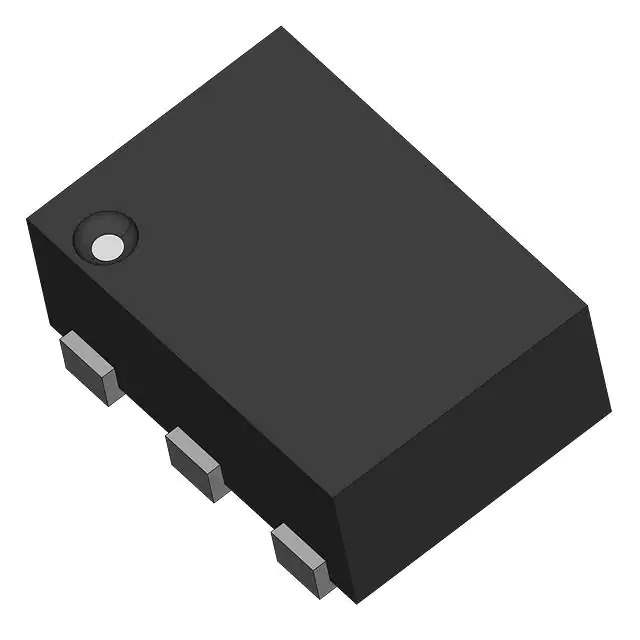

74AUP1G04GM Real Image
Same model may have multiple batches, images only for reference.

74AUP1G04GM

Part No 74AUP1G04GM
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC INVERTER 1CH 1-INP 6XSON
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series 74AUP
Package Bulk
Product Status Active
Logic Type Inverter
Number of Circuits 1
Number of Inputs 1
Voltage - Supply 0.8V ~ 3.6V
Current - Quiescent (Max) 500 nA
Current - Output High, Low 4mA, 4mA
Input Logic Level - Low 0.7V ~ 0.9V
Input Logic Level - High 1.6V ~ 2V
Max Propagation Delay @ V, Max CL 5.4ns @ 3.3V, 30pF
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 6-XSON (1.45x1)
Package / Case 6-XFDFN
Base Product Number 74AUP1G04
Standard Package 1 pcs
HTSUS 0000.00.0000
Win Source Part Number 548335-74AUP1G04GM
Ultra Librarian 3D Model Ultra Librarian 74AUP1G04GM CAD Model

Description

The 74AUP1G04GM is a single inverter gate integrated circuit (IC) from the 74AUP series.

  • Quiescent Current: low, 500nA
  • Voltage Supply Range: 0.8V to 3.6V
  • Maximum Propagation Delay: 5.4ns @ 3.3V
  • Current Output: 4mA
  • Mounting: surface mountable, 6-XFDFN package
  • Manufacturer: Nexperia USA Inc.
  • Status: active
