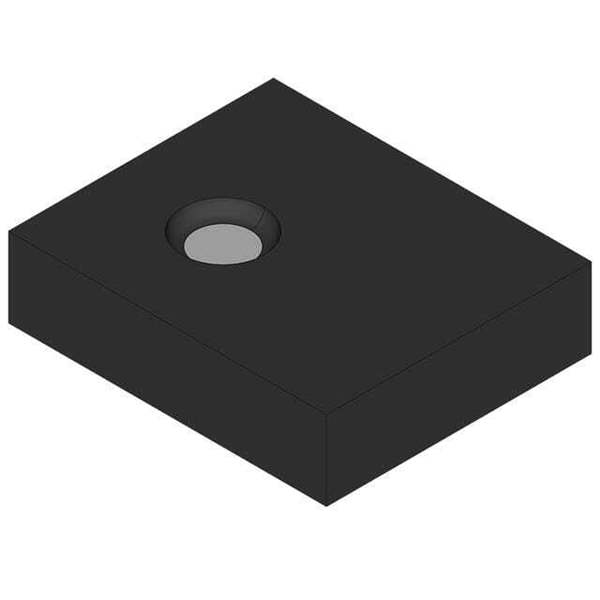

74LVC2G00GF,115 NXP
Same model may have multiple batches, images only for reference.

74LVC2G00GF,115

Part No 74LVC2G00GF,115
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC GATE NAND 2CH 2-INP 8XSON
Datasheet
74LVC2G00GF,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series 74LVC
Package Tape & Reel
Product Status Last Time Buy
Logic Type NAND Gate
Number of Circuits 2
Number of Inputs 2
Voltage - Supply 1.65V ~ 5.5V
Current - Quiescent (Max) 4 µA
Current - Output High, Low 32mA, 32mA
Input Logic Level - Low 0.58V ~ 1.65V
Input Logic Level - High 1.07V ~ 3.85V
Max Propagation Delay @ V, Max CL 3.3ns @ 5V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 8-XSON (1.35x1)
Package / Case 8-XFDFN
Base Product Number 74LVC2G00
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1114040-74LVC2G00GF,115
Ultra Librarian 3D Model Ultra Librarian 74LVC2G00GF,115 CAD Model

Description

The Nexperia USA Inc. 74LVC2G00GF,115 is a NAND gate integrated circuit.

  • Series: 74LVC
  • Application: Logic and gate
  • Circuits: Two
  • Supply Voltage Range: 1.65V to 5.5V
  • Propagation Delay: 3.3 ns @ 5V and 50 pF
  • Quiescent Current: 4 µA
  • Package: 8-XFDFN
  • Operating Temperature: -40°C to 125°C
  • Status: Active
  • REACH: Unaffected
