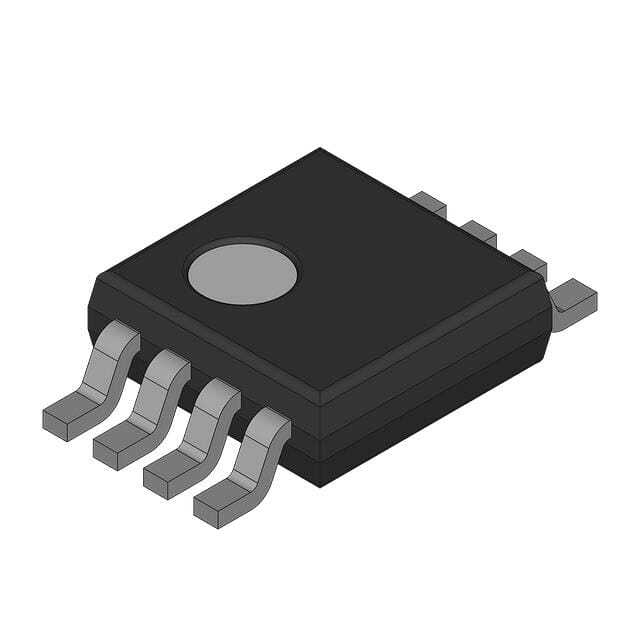

Same model may have multiple batches, images only for reference.
74LVC2G02DC,125 NXP
Same model may have multiple batches, images only for reference.

74LVC2G02DC,125

Part No 74LVC2G02DC,125
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC GATE NOR 2CH 2-INP 8VSSOP
Datasheet
74LVC2G02DC,125 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series 74LVC
Package Tape & Reel
Product Status Active
Logic Type NOR Gate
Number of Circuits 2
Number of Inputs 2
Voltage - Supply 1.65V ~ 5.5V
Current - Quiescent (Max) 4 µA
Current - Output High, Low 32mA, 32mA
Input Logic Level - Low 0.7V ~ 0.8V
Input Logic Level - High 1.7V ~ 2V
Max Propagation Delay @ V, Max CL 4.3ns @ 5V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 8-VSSOP
Package / Case 8-VFSOP (0.091", 2.30mm Width)
Base Product Number 74LVC2G02
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1258189-74LVC2G02DC,125
Ultra Librarian 3D Model Ultra Librarian 74LVC2G02DC,125 CAD Model

Description

The 1258189-74LVC2G02DC,125 is a dual NOR gate integrated circuit (IC) from the 74LVC series of logic gates and inverters.

  • Manufacturer: Nexperia USA Inc.
  • Package: Tape & Reel
  • Standard Package: 3,000 pieces
  • Package: 8-VFSOP
  • Mounting: Surface Mount
  • ECCN: EAR99
  • Counterfeit Threat: 32%
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8542.39.0001
  • Product Status: Active
