BC846BW,115

Part No BC846BW,115
Manufacturer Nexperia USA Inc.
Catalog TRANSISTORS
Description Bipolar Transistors - BJT 65 V, 100 mA NPN general-purpose transistors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia
Mounting Style SMD/SMT

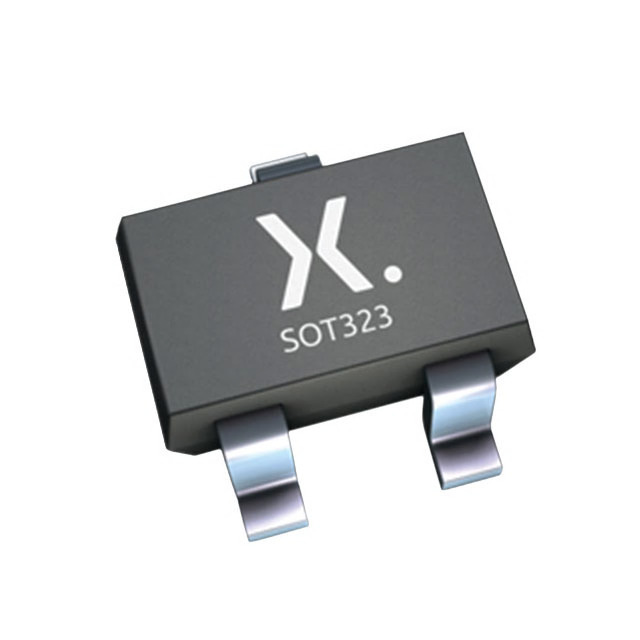

Package / Case SOT-323-3
Transistor Polarity NPN
Configuration Single
Collector- Emitter Voltage VCEO Max 65 V
Collector- Base Voltage VCBO 80 V
Emitter- Base Voltage VEBO 6 V
Collector-Emitter Saturation Voltage 200 mV
Maximum DC Collector Current 100 mA
Pd - Power Dissipation 200 mW
Gain Bandwidth Product fT 100 MHz
Minimum Operating Temperature - 65 C
Maximum Operating Temperature + 150 C
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
DC Current Gain hFE Max 200 at 2 mA, 5 V
Height 1 mm
Length 2.2 mm
Technology Si
Width 1.35 mm
Brand Nexperia
DC Collector/Base Gain hfe Min 200 at 2 mA, 5 V
Product Type BJTs - Bipolar Transistors
Standard Pack Qty 3000
Subcategory Transistors
Ultra Librarian 3D Model Ultra Librarian BC846BW,115 CAD Model

Description

The Nexperia BC846BW,115 is a high frequency, low voltage NPN transistor designed for use in discrete semiconductor products. Nexperia

  • Maximum Collector Current: 100mA
  • Maximum Collector-Emitter Breakdown Voltage: 65V
  • DC Current Gain: 200 @ 2mA, 5V
  • Vce Saturation: 400mV @ Ib, Ic
  • Package: SC-70, SOT-323
  • Supply: Reel
  • Temperature Range: -150°C
  • Popularity: High
  • Supply and Demand Status: Balanced
