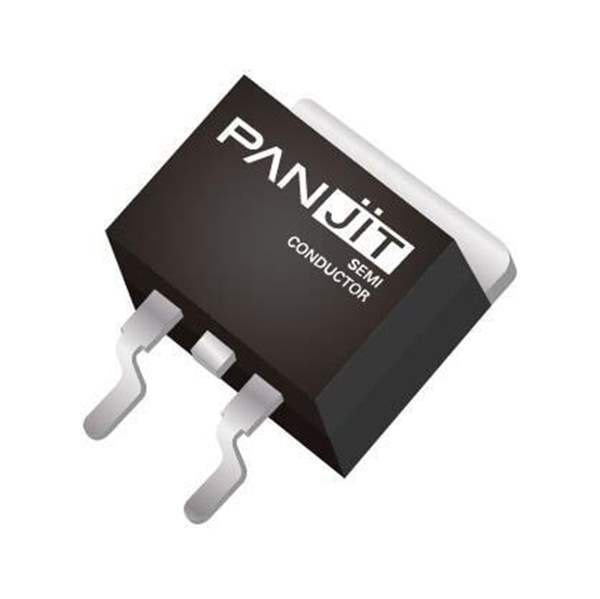

Same model may have multiple batches, images only for reference.
PJD16P06A_L2_00001 Panjit – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PJD16P06A_L2_00001

Part No PJD16P06A_L2_00001
Manufacturer Panjit
Catalog TRANSISTORS
Description MOSFETs 60V P-Channel Enhancement Mode MOSFET
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panjit
Technology Si
Mounting Style SMD/SMT
Package / Case TO-252AA-3
Transistor Polarity P-Channel
Number of Channels 1 Channel
Vds - Drain-Source Breakdown Voltage 60 V
Id - Continuous Drain Current 16 A
Rds On - Drain-Source Resistance 65 mOhms
Vgs - Gate-Source Voltage - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage 2.5 V
Qg - Gate Charge 22 nC
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Pd - Power Dissipation 25 W
Channel Mode Enhancement
Series NFET-60SMP
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
Configuration Single
Transistor Type 1 P-Channel
Brand Panjit
Fall Time 16 ns
Product Type MOSFETs
Rise Time 42 ns
Standard Pack Qty 3000
Subcategory Transistors
Typical Turn-Off Delay Time 65 ns
Typical Turn-On Delay Time 13 ns
Ultra Librarian 3D Model Ultra Librarian PJD16P06A_L2_00001 CAD Model
