The BFS505,115 is a high-performance NPN Silicon Germanium Carbon (SiGe:C) RF Bipolar Junction Transistor (BJT) from NXP Semiconductors, renowned for its exceptional speed and low noise characteristics. Designed to meet the rigorous demands of modern RF signal amplification, this transistor is a perfect fit for a wide range of applications, including but not limited to, wireless communication, satellite systems, and high-frequency analog circuits.

Key Features

• High Gain Bandwidth Product: The BFS505,115 boasts an impressive gain bandwidth product (fT) that ensures high-frequency performance, making it suitable for applications requiring fast signal processing.
• Low Noise Figure: With its low noise figure, this transistor provides excellent signal clarity, which is crucial for high-fidelity RF amplification and sensitive receiver circuits.
• Enhanced Thermal Performance: The device's superior thermal management capabilities ensure reliable operation even under strenuous conditions.
• High Linearity: The linearity of the BFS505,115 makes it an ideal choice for applications where signal distortion must be minimized.

Applications

• Wireless Communication Systems
• Global Positioning Systems (GPS)
• Low-Noise Amplifiers (LNAs)
• RF Power Amplifiers
• Oscillator Circuits

Product Specifications

Parameter Value Configuration Single Transistor Polarity NPN Collector-Emitter Voltage VCEO Max 15 V Emitter-Base Voltage VEBO 1.8 V Collector Current - Continuous IC 25 mA DC Current Gain hFE 70 at 8 mA, 5 V Power - Max 250 mW

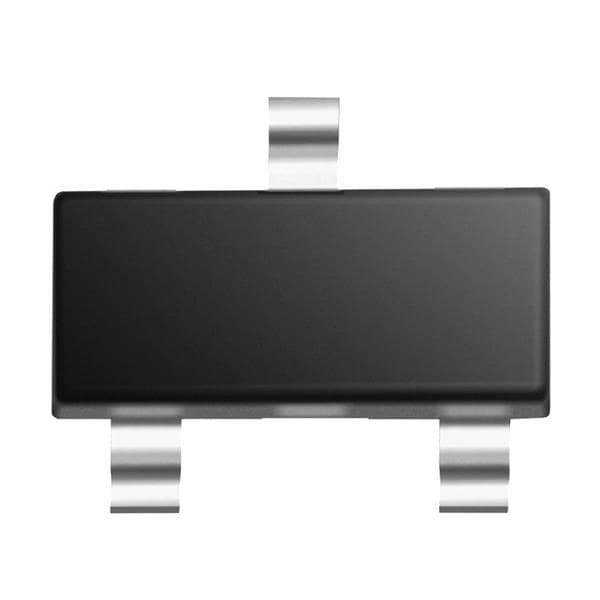

The BFS505,115 transistor is packaged in a surface-mount, plastic SOT23, which is not only space-efficient but also compatible with automated assembly processes, reducing manufacturing time and costs. Its robust design and adherence to NXP's stringent quality standards make it a reliable and durable choice for both commercial and industrial applications.
