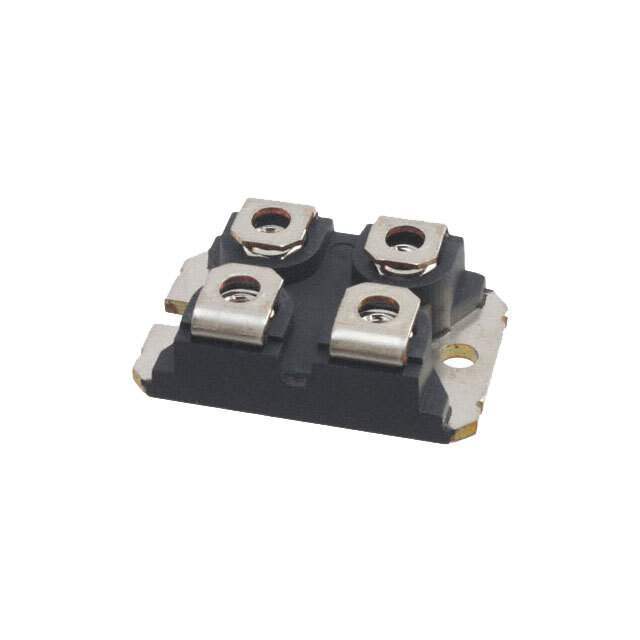

APT60GT60JRDQ3 Microchip Technology
Same model may have multiple batches, images only for reference.

APT60GT60JRDQ3

Part No APT60GT60JRDQ3
Manufacturer Microchip Technology
Catalog TRANSISTORS
Description IGBT 600V 105A 379W SOT227
Datasheet
APT60GT60JRDQ3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products >Transistors >IGBTs IGBT Modules
Manufacturer Microchip Technology
Packaging  Tube
Part Status Obsolete
IGBT Type NPT
Configuration Single
Voltage - Collector Emitter Breakdown (Max) 600
Current - Collector (Ic) (Max) 105 A
Power - Max 379 W
Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 60A
Ultra Librarian 3D Model Ultra Librarian APT60GT60JRDQ3 CAD Model

Description

  • Low Forward Voltage Drop
  • High Freq. Switching to 100KHz
  • Low Tail Current
  • Ultra Low Leakage Current
  • RBSOA and SCSOA Rated
