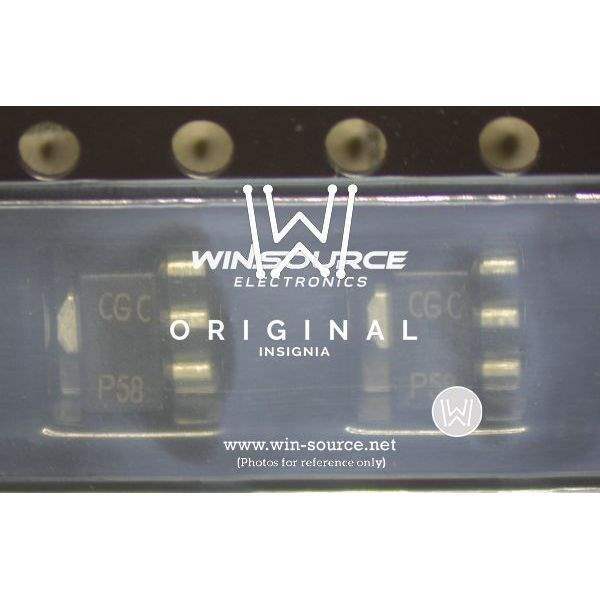

BC869-16,115 Nexperia USA Inc. BC869-16,115 real image BC869-16,115 label picture
Same model may have multiple batches, images only for reference.
BC869-16,115 Nexperia USA Inc. BC869-16,115 real image BC869-16,115 label picture
BC869-16,115 Nexperia USA Inc. BC869-16,115 real image BC869-16,115 label picture
Same model may have multiple batches, images only for reference.

BC869-16,115

Part No BC869-16,115
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single
Description TRANS PNP 20V 1A SOT89
Datasheet
BC869-16,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Transistor Polarity PNP
Maximum Current Collector 1A
VCEO Maximum Collector-Emitter Breakdown Voltage 20V
Max Vce (sat) 500mV @ 100mA, 1A
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 100 @ 500mA, 1V
Maximum Power Dissipation 1.2W
Frequency - Transition 140MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-89-3
Win Source Part Number 1022539-BC869-16,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BC869-16,115 CAD Model

Description

The BC869-16,115 is a PNP Bipolar Transistor with a maximum collector-emitter breakdown voltage of 20V and a maximum current collector of 1A.

  • Case/Package: SOT-89-3
  • Application: Discrete Semiconductor Products
  • Frequency Transition: 140MHz
  • Typical Gain (hFE): 100 @ 500mA and 1V
