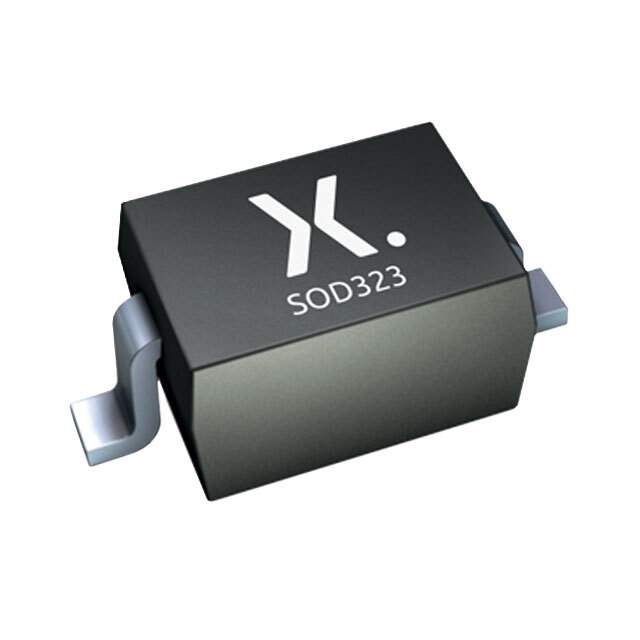

PESD15VL1BAZ Real Image
Same model may have multiple batches, images only for reference.

PESD15VL1BAZ

Part No PESD15VL1BAZ
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 15VWM 44VC SOD323 / 44V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
Datasheet
PESD15VL1BAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V (Max)
Voltage - Breakdown (Min) 17.1V
Voltage - Clamping (Max) @ Ipp 44V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 16pF @ 1MHz
Temperature Range - Operating 150°C (TJ)
Mounting Surface Mount
Case / Package SC-76, SOD-323
Supplier Device Package SOD-323
Base Product Number PESD15
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 934058423145
Standard Package 3,000
Win Source Part Number 1334957-PESD15VL1BAZ
Ultra Librarian 3D Model Ultra Librarian PESD15VL1BAZ CAD Model

Description

The Nexperia USA Inc. PESD15VL1BAZ is a surface mount transient voltage suppressor (TVS) diode designed for use in a variety of applications, including power supplies and protection circuits.

  • Reverse Standoff Voltage (Vr): 15V
  • Breakdown Voltage (Vbr): 17.1V
  • Maximum Clamping Voltage (Vc): 44V @ a peak pulse current (Ipp) of 5A
  • Operating Temperature Range: -55°C to 150°C
  • Package: SOD-323
  • Capacitance: 16pF @ a frequency of 1MHz
  • Compliance: RoHS3 compliant
  • Maximum Power Dissipation: 200W
