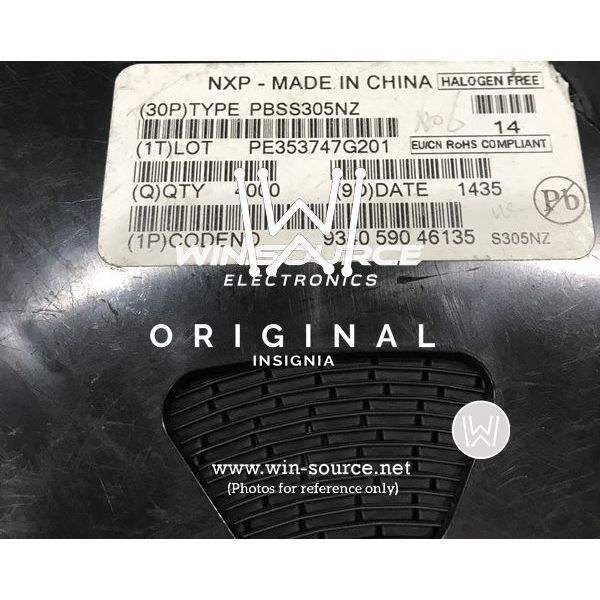

PBSS305NZ,135 Nexperia USA Inc. PBSS305NZ,135 label picture PBSS305NZ,135 real image
Same model may have multiple batches, images only for reference.
PBSS305NZ,135 Nexperia USA Inc. PBSS305NZ,135 label picture PBSS305NZ,135 real image
PBSS305NZ,135 Nexperia USA Inc. PBSS305NZ,135 label picture PBSS305NZ,135 real image
Same model may have multiple batches, images only for reference.

PBSS305NZ,135

Part No PBSS305NZ,135
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single
Description TRANS NPN 80V 5.1A SOT-223
Datasheet
PBSS305NZ,135 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Transistor Polarity NPN
Maximum Current Collector 5.1A
VCEO Maximum Collector-Emitter Breakdown Voltage 80V
Max Vce (sat) 270mV @ 255mA, 5.1A
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 180 @ 2A, 2V
Maximum Power Dissipation 2W
Frequency - Transition 110MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-223
Win Source Part Number 1086426-PBSS305NZ,135
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PBSS305NZ,135 CAD Model

Description

The PBSS305NZ,135 is a NPN transistor that operates at a frequency of 110MHz from Nexperia.

  • Frequency: 110MHz
  • Collector-Emitter Breakdown Voltage: 80V
  • Power Dissipation: 2W
  • Package: SOT-223
  • Collector Current: 5.1A
  • Typical Gain: 180 @ 2A and 2V
  • Collector Cut-off Current: 100nA
  • Maximum Vce (sat): 270mV @ 255mA and 5.1A
  • Supply and Demand Status: Balance
  • Popularity: Medium
